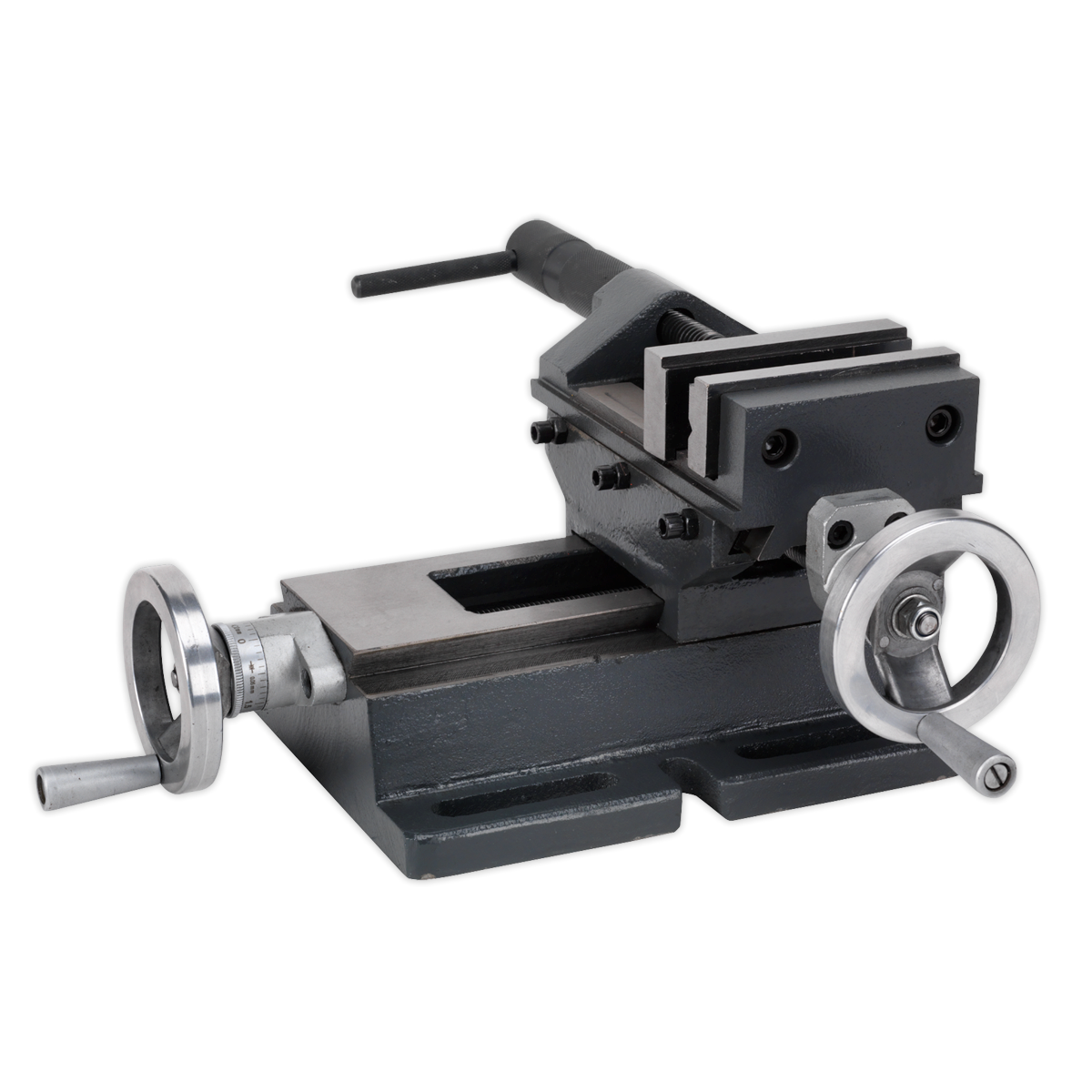

Sealey CV4P Cross Vice 100mm Professional
Sealey CV4P Cross Vice 100mm Professional
Highlights
• Fixed base (X + Y Axis) cast iron construction for strength and durability.

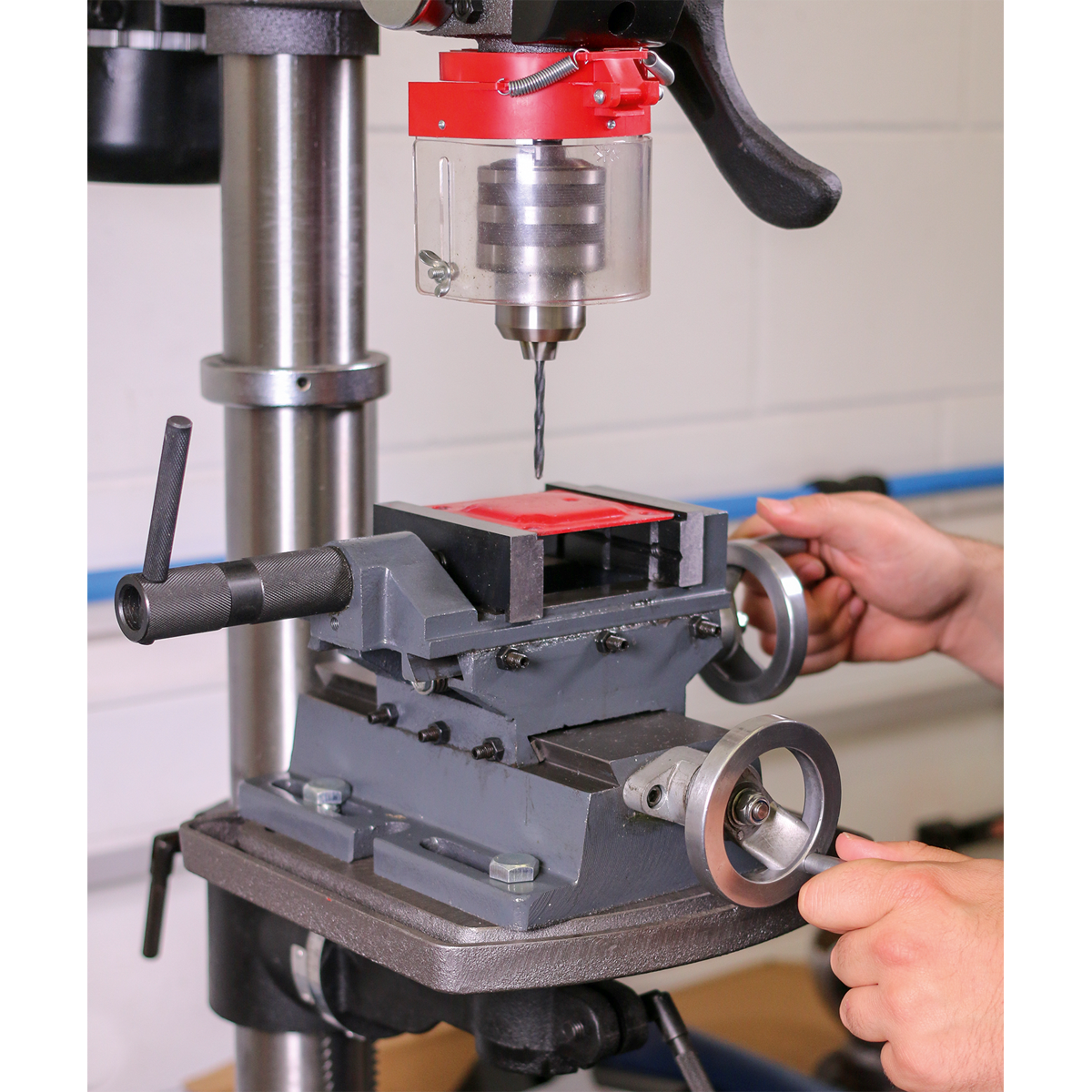

• Ideal for drilling and milling operations.
• Built with greater tolerances and finer threads with clear and accurate (±0.05mm) lateral and longitudinal scales, allowing more precise setting of the workpiece.
• Jaw Width/Depth/Opening: 100/35/75mm.
• Lateral/Longitudinal Travel: 120/80mm.
Technical Details
| Jaw Opening: | 75mm |
| Jaw Width: | 100mm |
| Nett Weight: | 10kg |
| Overall Height: | 155mm |
| Throat Depth: | 35mm |
| Travel: | Longitudinal; 80mm, Lateral; 120mm |
Optional
Sealey CV6P Cross Vice 150mm Professional
Optionally this cross vice can be purchased in a bigger version type CV6P with a 150 mm jaw width to facilitate machining of larger components.
Highlights
Fixed base (X + Y Axis) cast iron construction for strength and durability. • Ideal for drilling and milling operations. • Built with greater tolerances and finer threads with clear and accurate (±0.05mm) lateral and longitudinal scales, allowing more precise setting of the workpiece. • Jaw Width/Depth/Opening: 150/40/135mm. • Lateral/Longitudinal Travel: 110/150mm.
Technical Details
| Jaw Opening: | 135mm |
| Jaw Width: | 150mm |
| Nett Weight: | 15kg |
| Overall Height: | 170mm |
| Throat Depth: | 40mm |
| Travel: | Longitudinal; 110mm, Lateral; 150mm |
Warranty
Sealey 12 months warranty
