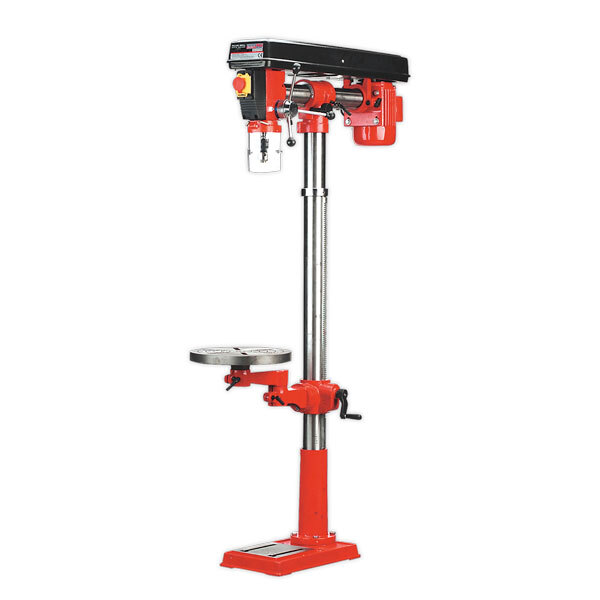

Sealey GDM1630FR Radial Pillar Drill Floor 5-Speed 1620mm Height 550W/230V
Sealey GDM1630FR Radial Pillar Drill Floor 5-Speed 1620mm Height 550W/230V
Highlights
• Heavy-duty construction.
• Safety devices fitted include a no-volt release switch and pulley cover cut-out microswitch.
• Radial feature allows off-table drilling and angle drilling
. • Features a maximum throat depth of 420mm.
• Radial arm controlled by rack and pinion assembly allowing fine positioning of drill bit
. • Also available as bench mounting type - GDM790BR.
• Mortise attachment available, order Model No. MA10
. • 16mm(5/8") Capacity chuck, MT2.
• Height: 1620mm
. • Spindle Centre to Column - Max: 420mm.
• Motor Power: 550W.
• Column Diameter: 70mm
. • Spindle Travel: 80mm.
• Weight: 59kg.
Technical Details
| Base Size: | 420 x 250mm |
| Collar Diameter: | Ø60mm |
| Column Diameter: | Ø70mm |
| Drilling Capacity (Chuck Size): | 16mm |
| Maximum Distance Spindle to Base: | 1280mm |
| Maximum Distance Spindle to Table: | 830mm |
| Nett Weight: | 59kg |
| Number of Speeds: | 5 |
| Optional Accessories: | GDMX/KC - Keyless Pillar Drill Chuck 16mm |
| Overall Height: | 1620mm |
| Radial Arm Travel: | 285mm |
| Speed Range: | 500-2450rpm |
| Spindle Centre to Column: | 420mm |
| Spindle Nose Taper: | MT2 |
| Spindle Travel: | 80mm |
| Supply: | 230V |
| Swing: | 840mm |
| Working Base Surface Size: | 210 x 190mm |
| Working Table Surface Size: | Ø310mm |
Warranty
Sealey 1 year guarantee as standard
