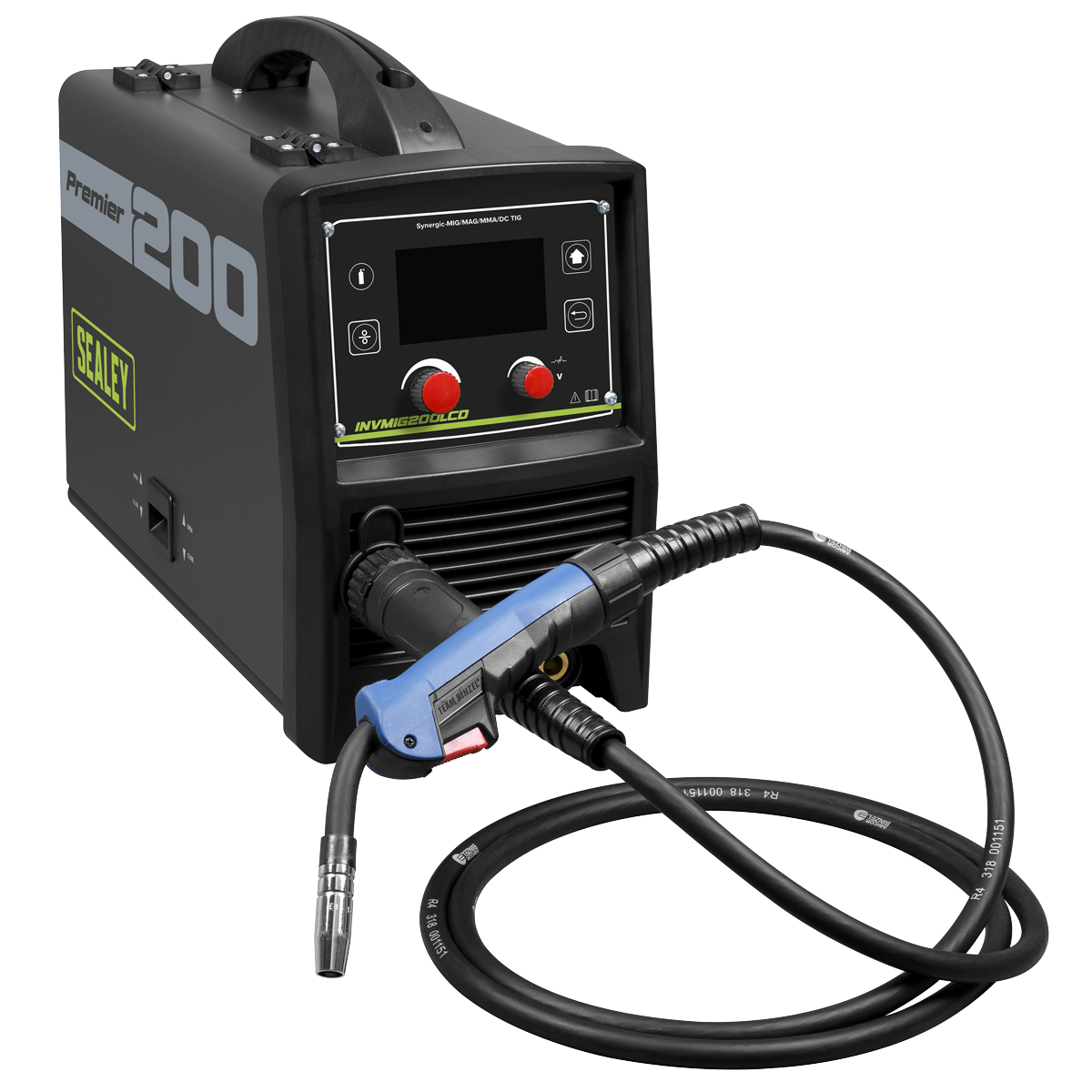

Sealey INVMIG200LCD Synergic Inverter Welder MIG, TIG & MMA 200A with LCD Screen
Sealey INVMIG200LCD Synergic Inverter Welder MIG, TIG & MMA 200A with LCD Screen
Ex Stock
Highlights
• 3-in-1 WELDER - uses state-of-the-art inverter technology to achieve MIG/TIG/MMA (Arc). • INVERTER TECHNOLOGY - offers many advantages over traditional transformer type welders, giving greater duty cycles and more power factor efficiency. • FAN COOLED - DC power supply for MIG and TIG, suitable to weld steel, stainless steel, copper, nickel, titanium, and their alloys. • ALSO SUITABLE FOR ARC WELDING - a variety of rods including rutile, basic and stainless from Ø1.6 to Ø4mm. • FULLY FUNCTIONAL - LCD front panel with easy to follow set-up. • First, select type of welding, you will be advised the gas mixture and polarity recommended. Input electrode or wire thickness, completing the set-up with the material thickness, you are then ready to start welding. • Up to four set-ups can be saved on the machine for fast loading. • SWITCHABLE - between MIG, TIG* or MMA* welding modes (*optional torches required). • 3 YEAR GUARANTEE*.
Technical Details
.
| Nett Weight: | 15kg (power source only) |
| Duty Cycle: | |
| MIG: | 20% @ 200A, 100% @ 89A |
| TIG: | 20% @ 180A, 100% @ 80A |
| MMA (Arc) | 20% @ 180A, 100% @ 80A |
| Wire Capacity: | 5kg |
| Electrode Capacity: | 1.6 - 4mm |
| Absorbed Power: | 8.6kW |
| Supply: | 230V ** |
| Insulation: | IP21S |
| Protection: | F |
| IP Rating: | |
| Weight: | 17kg |
| MIG Torch: | Euro Non-Live BINZEL® MB15* |
| MMA Accessory Kit (Optional) | MMA01 |
| TIG Accessory Kit (Optional) | TIG10S |
| Note: | * included as standard ** To acheive maximum power a 32A supply may be required. |
Optional Accessories for use with this welder
Contact Tip 1mm MB25/MB36 Pack of 5 TG100/2
• Pack of 1mm contact tips suitable for use with our range of gasless MIG welders.
| Nett Weight: | 0.05kg |
| Pack Qty: | 5 |
| Size: | 1mm |
| Torch Type: | MB25/MB36/Gasless |
Conical Nozzle MB15 Pack of 3 MIG955
MIG Torch with 3m Euro Connection MB15 MIG/N315
MMA Accesssory Kit MMA01
Electrode holder suitable for Sealey and other leading brands of inverters with DINSE connectors.
| Nett Weight: | 0.68kg |
Suitable for Sealey and other leading brands of inverter welders fitted with Dinse connectors.

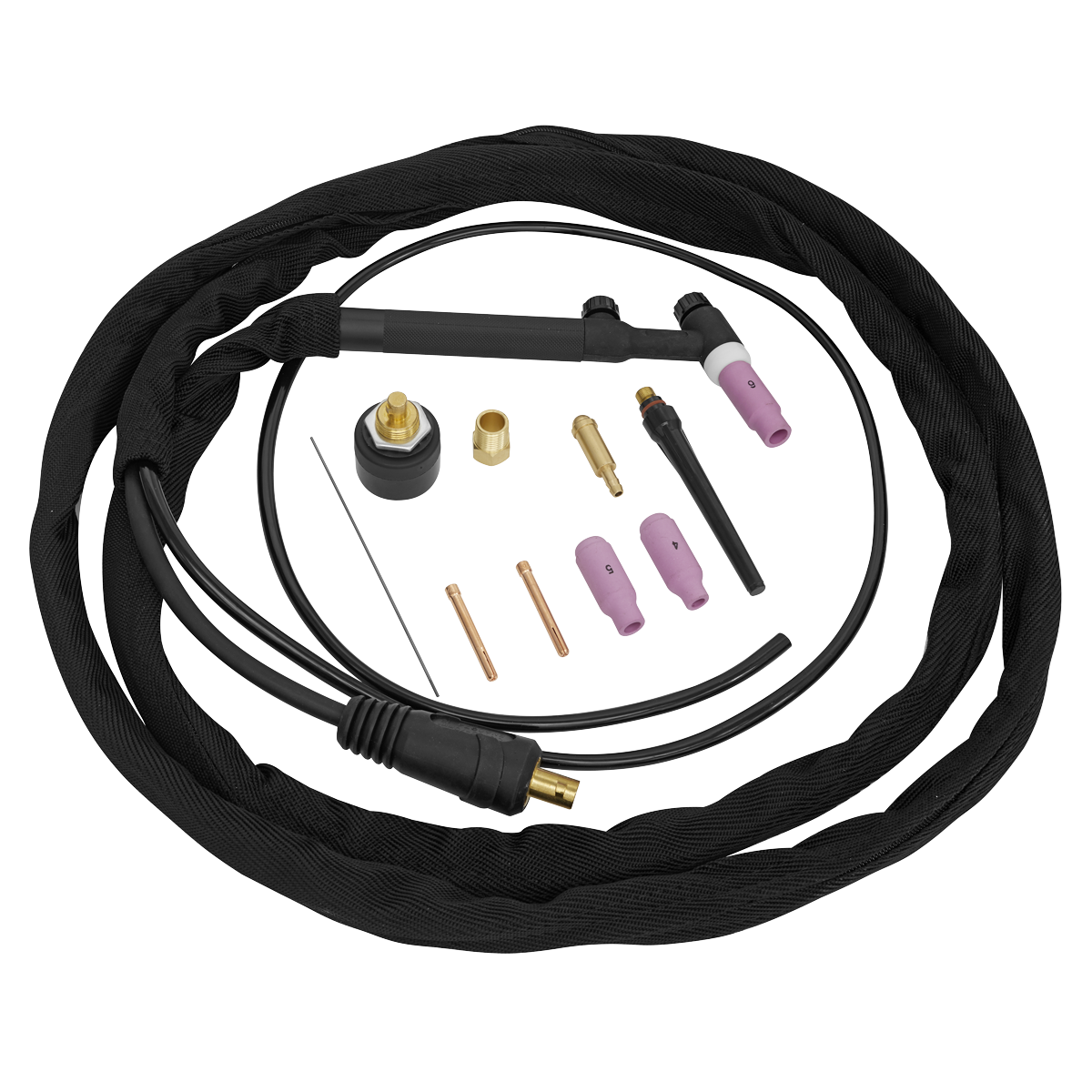

Inverter TIG Welding Torch 16mm² TIG10S
Warranty
Sealey 3 year guarantee as standard
Founded in 1978, Sealey is now known nationally and internationally as a leading brand of professional hand and power tools.
