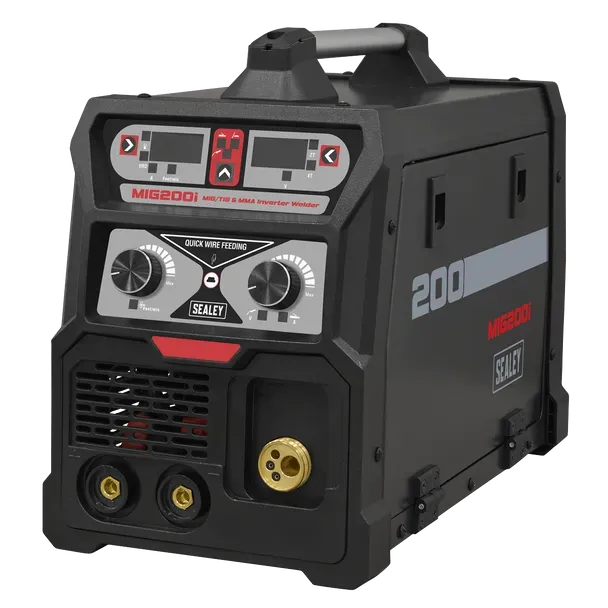

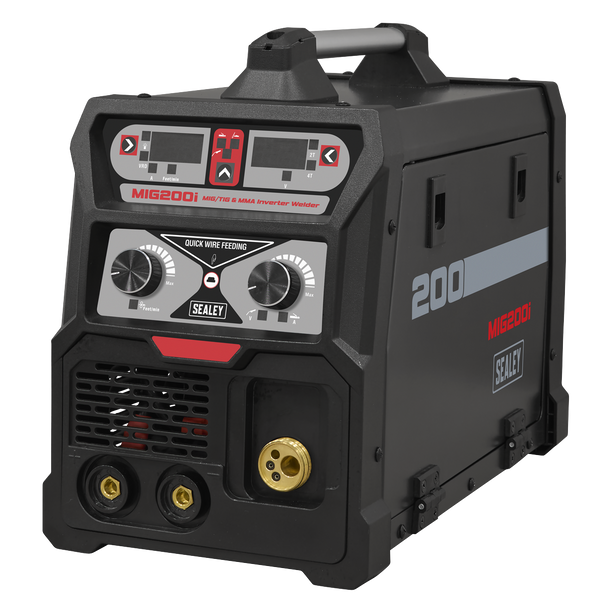

Sealey MIG200i MIG/TIG & MMA (ARC/STICK) Inverter Welder 200A
Sealey MIG200i MIG/TIG & MMA (ARC/STICK) Inverter Welder 200A
Highlights
• IGBT INVERTER TECHNOLOGY - IGBT Inverter fan-cooled DC power supply for MIG/TIG and MMA/ARC welding applications up to 200A.
• 3 IN 1 FUNCTION - Multi-functional welder bringing together MIG/TIG and MMA application all into one compact unit ideal for workshops, garages, bodyshops and mobile technicians.
• HIGHLY PORTABLE - Ultra-compact and lightweight weighing just 11.1kg and supplied with carry handle making this unit highly portable allowing the welder to be taken to the job at hand.
• FEATURING - Featuring hot start, anti-stick, forced air cooling and thermal cut out protection.
• WELDING CAPABILITY - Unit can MIG weld using 5kg Ø0.8/Ø0.9/Ø1.0mm solid wire and flux cored MIG wire, MMA/ARC weld Ø1.6 up to Ø4.0mm electrode.

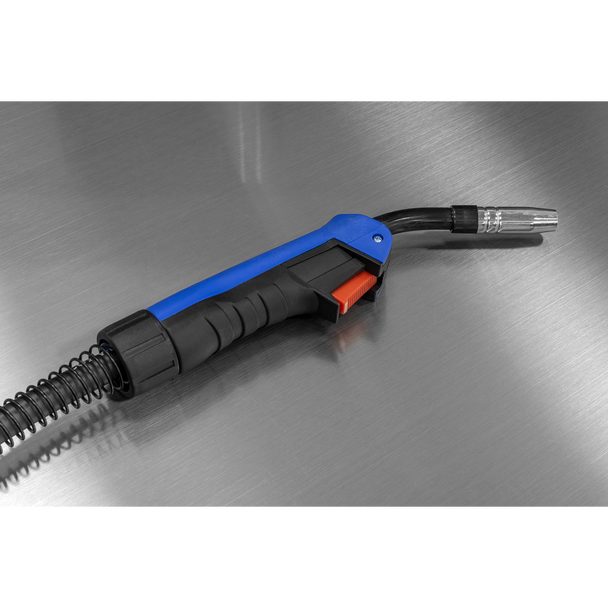

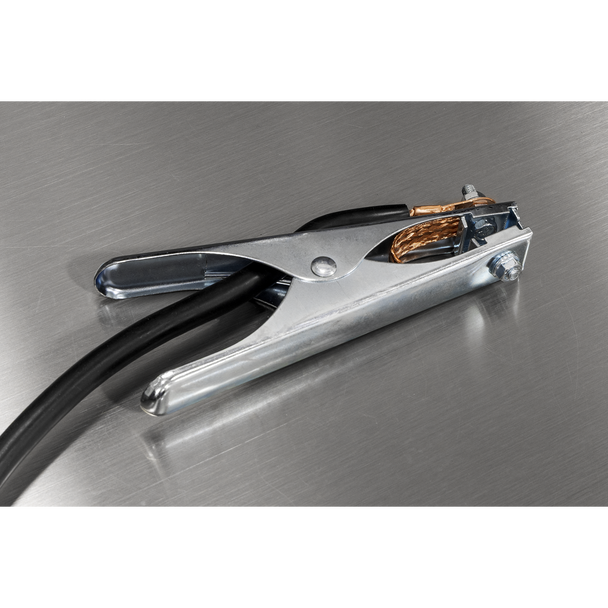

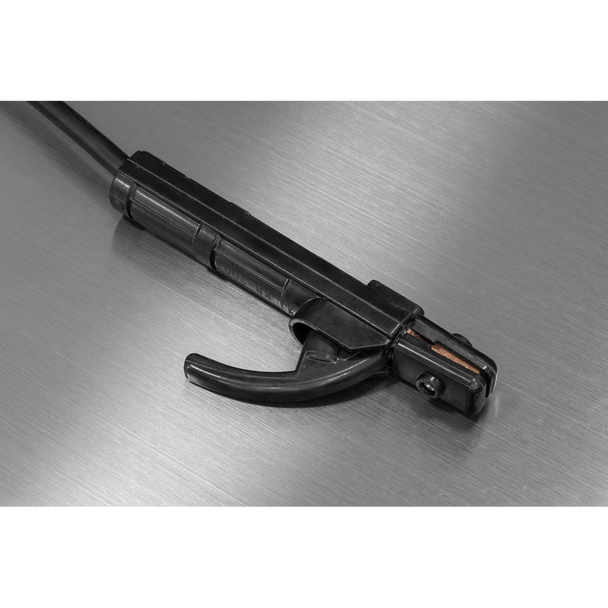

• SUPPLIED WITH - Supplied with fixed non-live MIG torch 2.8m, 1.4m earth cable/clamp, 1.6m electrode holder.
• DUTY CYCLE – MIG - 60% @ 200A, TIG - @ 60% 170A, MMA/ARC - 60% @ 170A.
Technical Details
| Welding Current: | 50-200A |
| Duty Cycle Mig: | 60% @ 200A, 100% @ 154A |
| Duty Cycle MMA: | 60% @ 170A, 100% @ 131A |
| Duty Cycle TIG: | 60% @ 170A, 100% @ 131A |
| Wire Capacity: | 5kg |
| Electrode Capacity: | Ø1.6-4mm |
| Absorbed Power: | 7.7kW |
| Insualtion Class: | H |
| IP Rating: | IP21S |
| Nett Weight:
|
11.1kg
|
| Barcode:
|
5054630469640
|
| Parts Diagram:
|
|
| Declaration of Conformity:
|
Warranty
Sealey 1 year guarantee as standard
Founded in 1978, Sealey is now known nationally and internationally as a leading brand of professional hand and power tools.

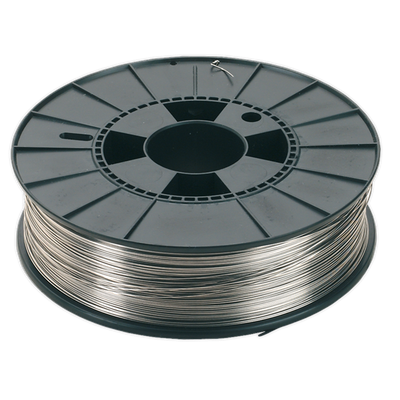

![Sealey Stainless Steel MIG Wire 0.8mm 5kg 308(S)93 Grade [MIG/5K/SS08]](https://d2j6dbq0eux0bg.cloudfront.net/images/29280030/4860077410.png "Sealey Stainless Steel MIG Wire 0.8mm 5kg 308(S)93 Grade [MIG/5K/SS08]")
