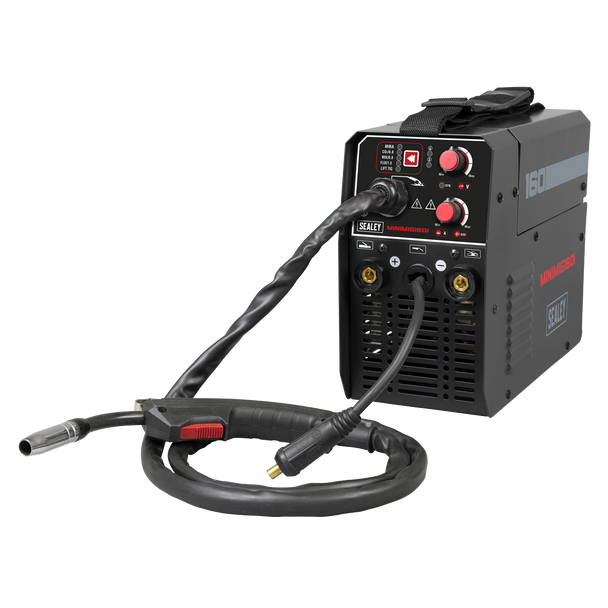

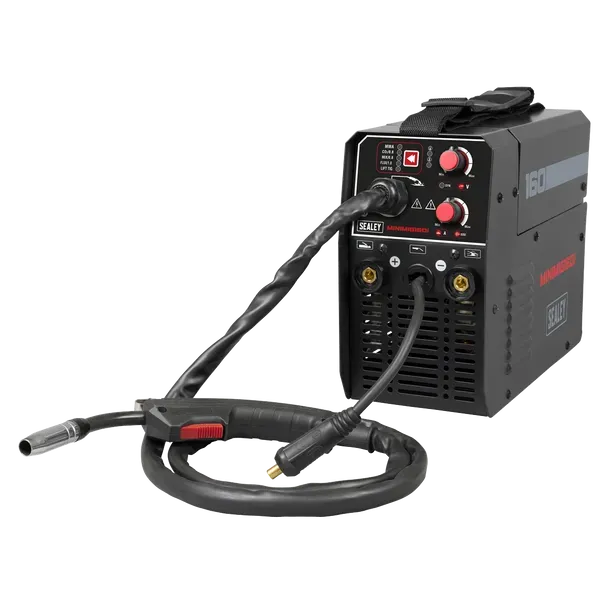

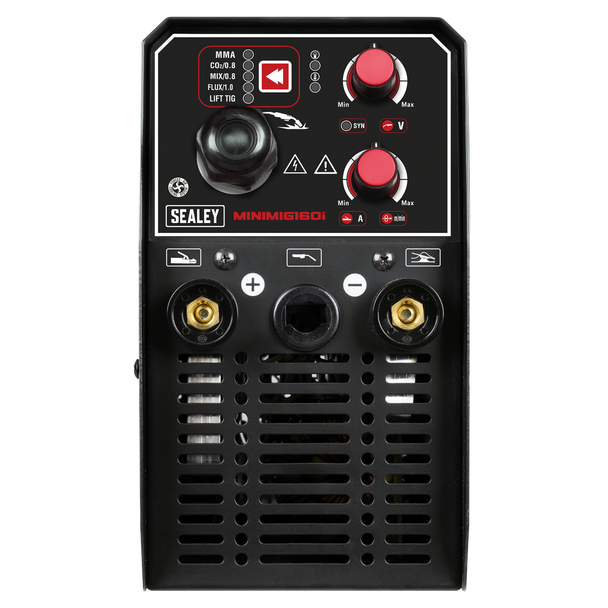

Sealey MINIMIG160i MIG/TIG & MMA (ARC/STICK) Inverter Welder 160A 230V
Sealey MINIMIG160i MIG/TIG & MMA (ARC/STICK) Inverter Welder 160A 230V
Highlights
• IGBT INVERTER TECHNOLOGY - IGBT Inverter fan-cooled DC power supply for MIG/TIG and MMA/ARC welding applications up to 160A.
• 3-IN-1 FUNCTION - Multi-functional welder bringing together MIG/TIG and MMA application all into one compact unit ideal for workshops, garages, bodyshops and mobile technicians.
• HIGHLY PORTABLE - Ultra-compact and lightweight weighing just 6.9kg and supplied with handy carry strap making this unit highly portable allowing the welder to be taken to the job at hand.
• FEATURING - Hot start, anti-stick, forced air cooling and thermal cut out protection.
• WELDING CAPABILITY - Unit can MIG weld using 1kg Ø0.8/0.9/1.0mm solid wire and Ø0.8/0.9mm flux cored MIG wire, MMA/ARC weld Ø1.6 up to Ø4.0mm electrode.
• SUPPLIED WITH - Supplied with fixed non-live MIG torch, 1.4m earth cable/clamp, 1.6m electrode holder.
• DUTY CYCLE – MIG - 60% @ 160A, TIG - 60% @ 160A, MMA/ARC - 60% @ 160A.
Technical Details
| Welding Current: | 10-160A |
| Duty Cycle MIG: | 60% @ 160A, 100% @ 124A |
| Duty Cycle MMA/ARC: | 60% @ 160A, 100% @ 124A |
| Duty Cycle TIG: | 60% @ 160A, 100% @ 124A |
| Wire Capacity: | 1kg Ø0.8/0.9/1.0mm solid wire and Ø0.8/Ø0.9mm flux cored MIG wire |
| Electrode Capacity: | 1.6-4mm |
| Absorbed Power: | 4.4kW |
| Supply: | 230V 16A* |
| Insulation Class: | H |
| IP Rating: | IP21S |
| Note * | To achieve maximum power a 16A supply may be required. |
| Nett Weight:
|
6.9kg
|
| Barcode:
|
5054630460814
|
Warranty
Sealey 1 year guarantee as standard
