Sealey Magnetic Drilling Machine 60mm 230V ( Model No. MAG60230V) Also optionally available in 110v. Additional Optional Rotabors available to suit.

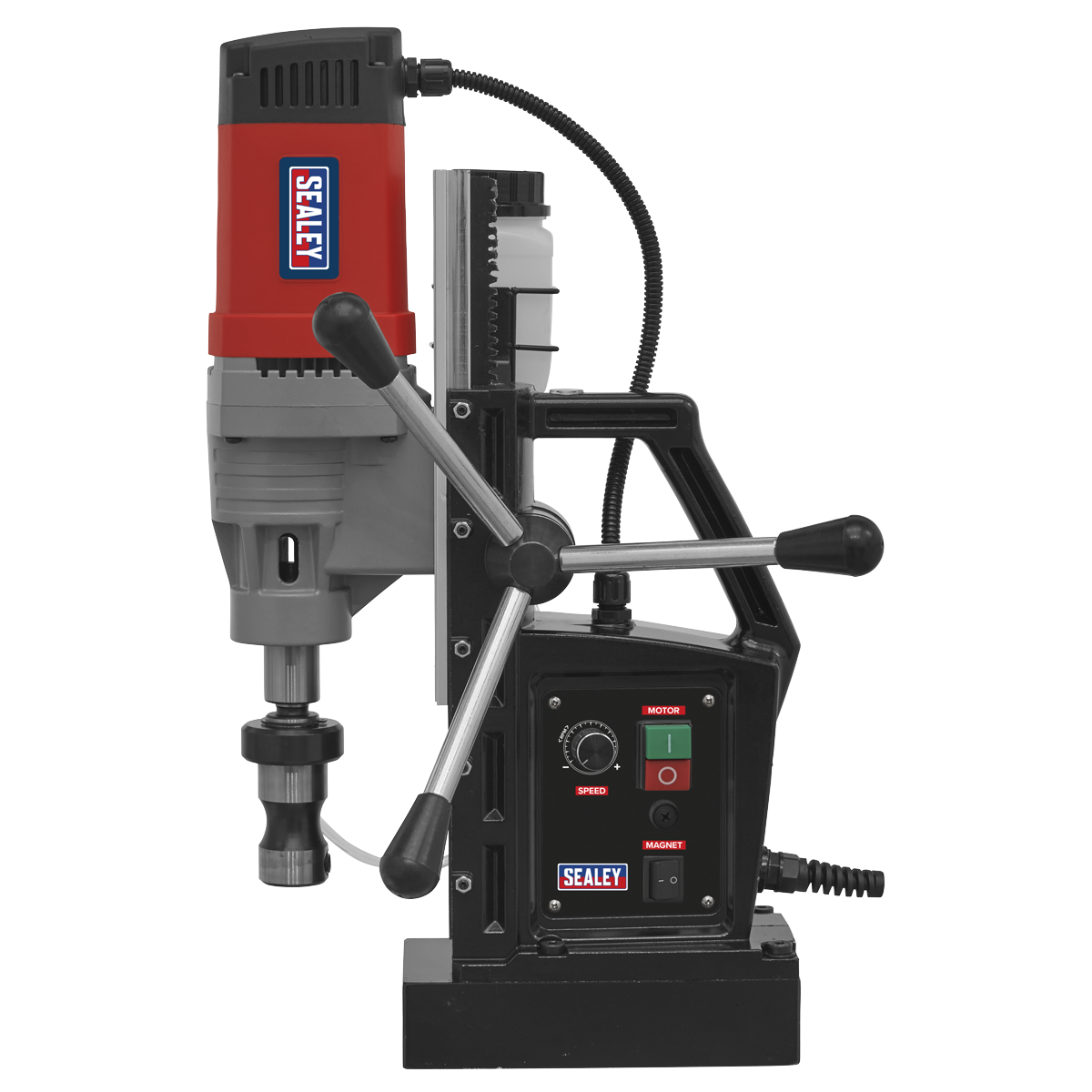

Sealey Magnetic Drilling Machine 60mm 230V (Model No. MAG60230V)
Highlights
Sealey Magnetic Drilling Machine 60mm 230V(Model No. MAG60230V)
• Manufactured using high quality components for performance and reliability.
• Made from heavy-duty die-cast magnesium alloy with a variable speed gearbox for greater accuracy
. • Fitted with a powerful magnet to ensure unit stays adhered at any angle.
• Includes safety fixing strap and integrated coolant system.
• Can be used with a 16mm twist drill chuck.
• Designed for use in fabrication, construction and other applications when drilling ferrous metal
Technical Details
| Magnet Adhesion: | 15800N |
| Maximum Annular Cutter Capacity: | 60mm |
| Maximum Cutter Depth: | 50mm |
| Nett Weight: | 21.6kg |
| Core Drill Diameter: | 60mm |
| Power Supply: | 220V - 50Hz |
| Motor Power: | 1680W |
| Magnetic Adhesion: | 15800N |
| No-Load Speed: | 100-470rpm |
| Cutting Depth: | 50mm |
| Morse Taper: | MT2 |
| Stroke Length: | 210mm |
Optional Alternative Machine
Sealey Magnetic Drilling Machine 60mm 110V ( Model No. MAG60110V )
Highlights
Sealey Magnetic Drilling Machine 60mm 110V ( Model No. MAG60110V )
• Manufactured using high quality components for performance and reliability.
• Made from heavy-duty die-cast magnesium alloy with a variable speed gearbox for greater accuracy.
• Fitted with a powerful magnet to ensure unit stays adhered at any angle.
• Includes safety fixing strap and integrated coolant system.
• Can be used with a 16mm twist drill chuck.
• Designed for use in fabrication, construction and other applications when drilling ferrous metal.
Technical Details
| Magnet Adhesion: | 15800N |
| Maximum Annular Cutter Capacity: | 60mm |
| Maximum Cutter Depth: | 50mm |
| Nett Weight: | 15.2kg |
| Core Drill Diameter: | 60mm |
| Power Supply: | 110V- 50Hz |
| Motor Power: | 1680W |
| Magnetic Adhesion: | 15800N |
| No-Load Speed: | 100-470rpm |
| Cutting Depth: | 50mm |
| Morse Taper: | MT2 |
| Stroke Length: | 210mm |
Optional Tooling

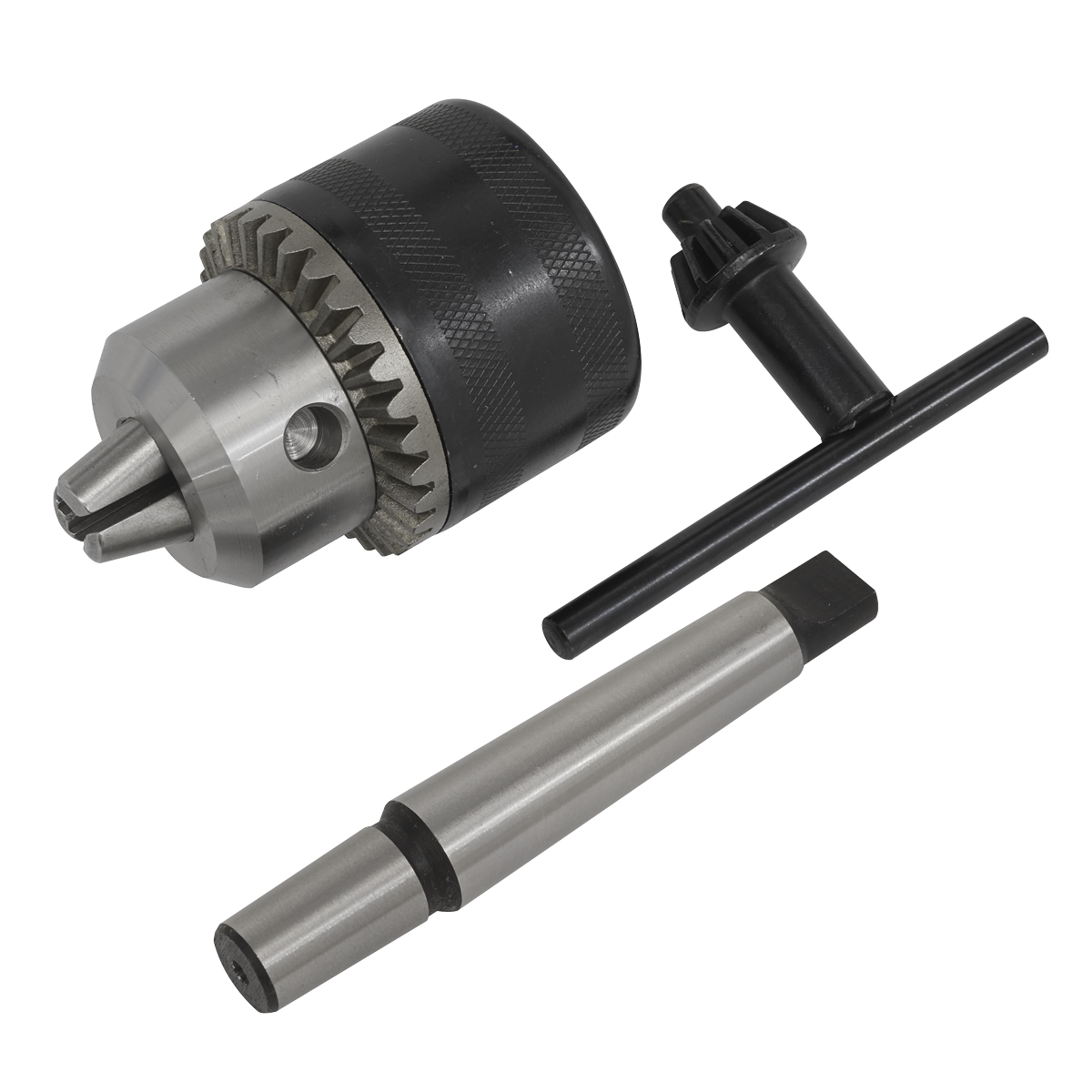

Sealey Magnetic Drill Twist Chuck 16mm MDDC16
16mm Twist chuck for MAG60 magnetic drill range.
| Nett Weight: | 0.72kg |
Worksafe® Short Straight Pin Pilot Rod 77mm RBSP
• Rotabor pilot rod suitable for 25mm cut Rotabors. • 13-35mm Rotabors only.
| Nett Weight: | 0.02kg |

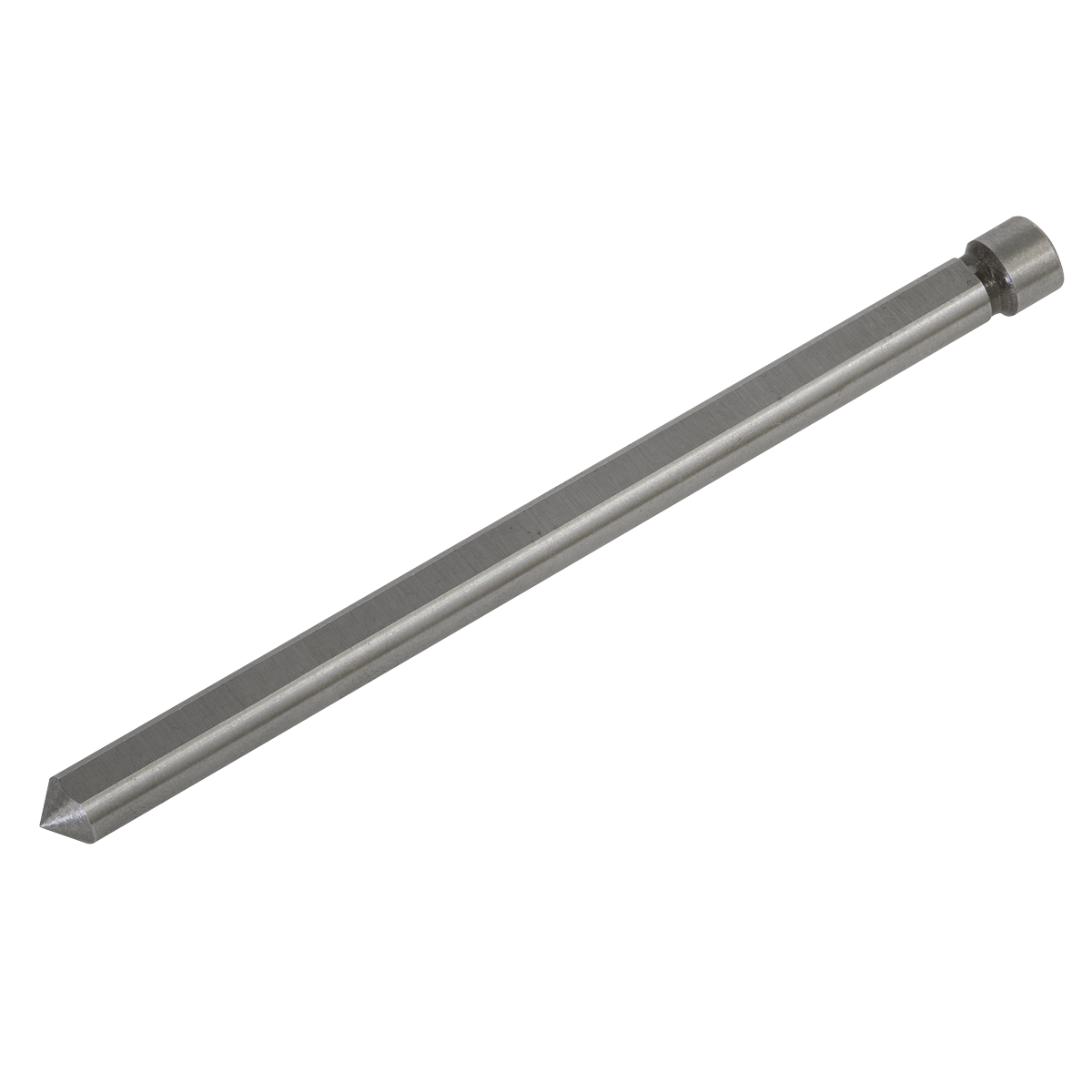

Worksafe® Long Straight Pin Pilot Rod 102mm WRBLP
Rotabor pilot rod suitable for 51mm cut Rotabors. • 25-51mm Rotabors only.
| Nett Weight: | 0.18kg |
HSS M2 Rotabors
Available from Traxx Industries Limited
See seperate listing for comprehensive size details available
12 mm to 51 mm sizes to suit
Available Short series 25mm Depth & Long series 50 mm Depth

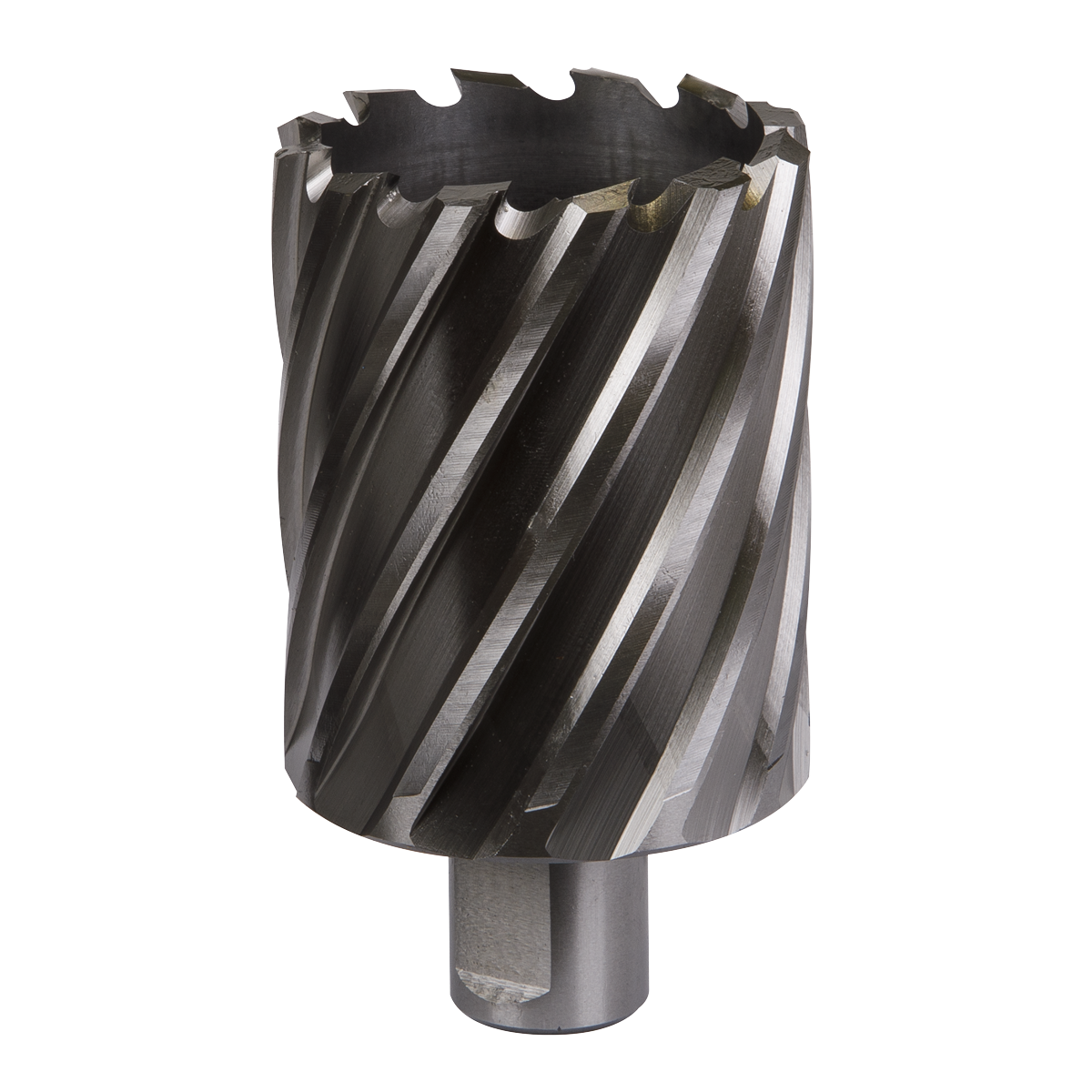

Worksafe® 50mm HSS Mag Drill Bit Cut Depth 25mm
Worksafe® 50mm HSS Mag Drill Bit Cut Depth 50mm
Warranty
Sealey 1 year guarantee as standard
