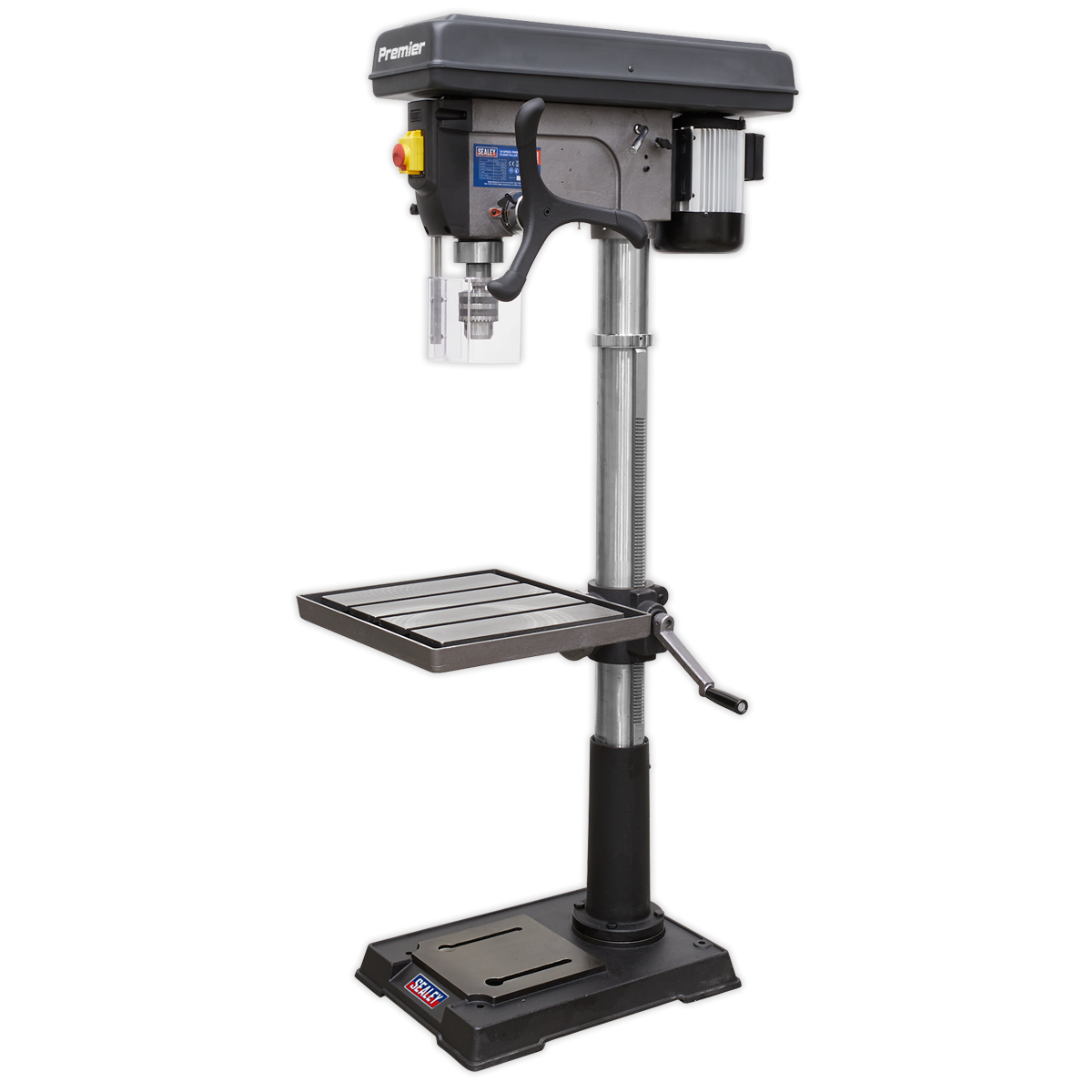

Sealey PDM260F Pillar Drill Floor 12-Speed 1100W 230V
Sealey PDM260F Pillar Drill Floor 12-Speed 1100W 230V
Highlights
• One of a comprehensive range of Premier floor standing pillar drills for the professional workshop.
• Features heavy-duty aluminium-bodied motor for long and reliable performance
. • No-volt release switch to prevent inadvertent start-up and pulley cover protected by microswitch to prevent drill operating when cover is open.
• Fitted with an integral work light which illuminates the drilling table giving operator a clear view of the drilling process (bulb not included).
• Supplied with an electrically inter-locked chuck guard.
• Large sized square table fitted with precision rack and pinion height adjustment.
• 20mm(3/4") Capacity chuck, MT4
. • Height: 1710mm.
• Spindle Centre to Column: 260mm.
• Motor Power: 1100W.
• Column Diameter: Ø92mm.
• Spindle Travel: 120mm
. • Weight: 131kg
. • This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
• 3 Year guarantee*.
Technical Details
| Base Size: | 575 x 455mm |
| Collar Diameter: | Ø85mm |
| Column Diameter: | Ø92mm |
| Drilling Capacity (Chuck Size): | 20mm |
| Integral Work Light: | Yes |
| Maximum Distance Spindle to Base: | 1160mm |
| Maximum Distance Spindle to Table: | 680mm |
| Motor Power (Start): | 1100W(1500W) |
| Nett Weight: | 110kg |
| Number of Speeds: | 12 |
| Optional Accessories: | PDM/KC - Keyless Pillar Drill Chuck 16mm |
| Overall Height: | 1710mm |
| Speed Range: | 120-3480rpm |
| Spindle Centre to Column: | 260mm |
| Spindle Nose Taper: | MT4 |
| Spindle Travel: | 120mm |
| Supply: | 230V |
| Swing: | 520mm |
| Working Base Surface Size: | 410 x 330mm |
| Working Table Surface Size: | 425 x 475mm |
Optional

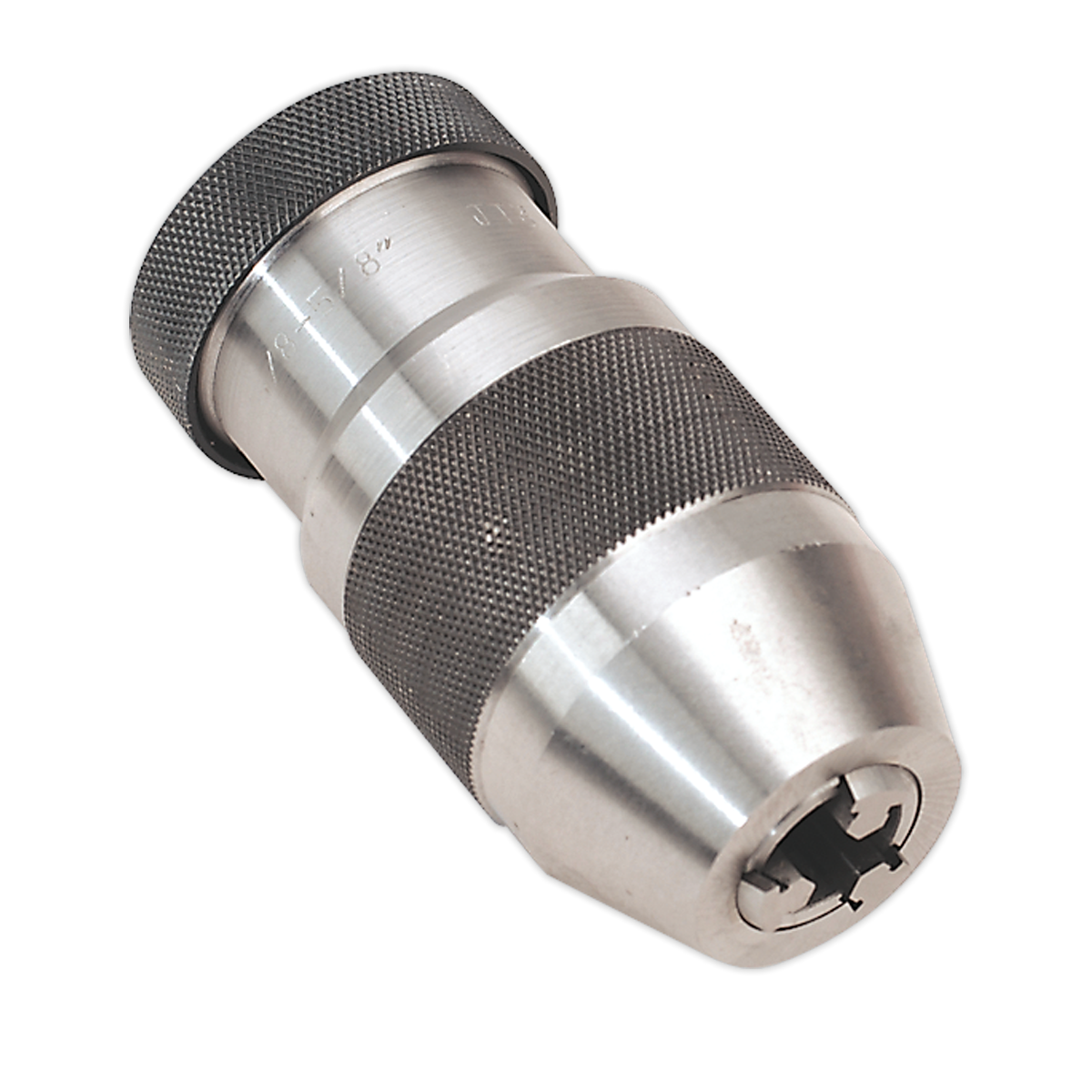

Sealey PDM/KC JT3 Arbor - 16mm Keyless Pillar Drill Chuck
| Application(s): | PDM Series Pillar Drills |
| Chuck Capacity: | 16mm |
| Nett Weight: | 0.83kg |
Suitable for PDM Series drilling machines with a JT3 arbor.
Warranty
Sealey 3 year guarantee as standard
