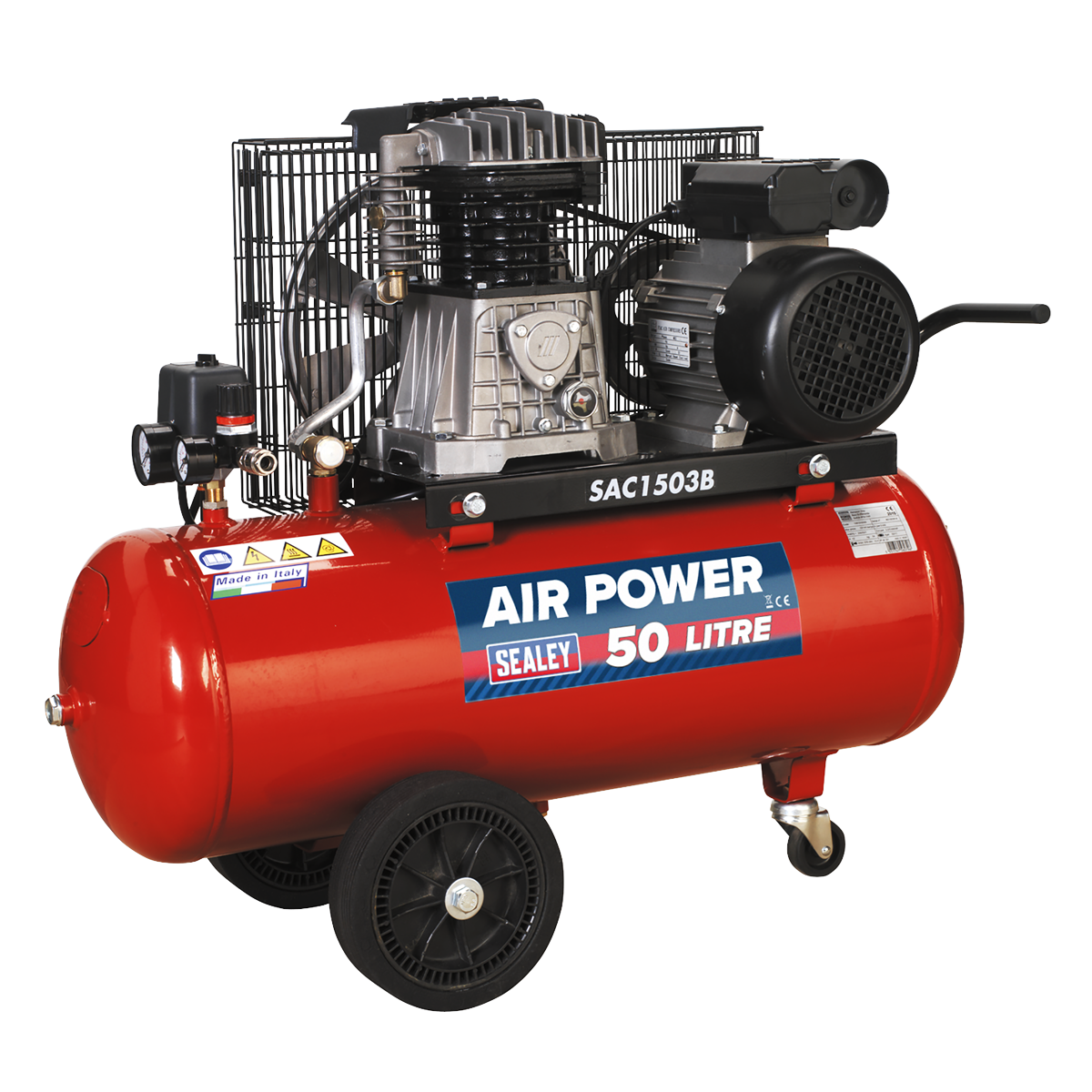

Sealey SAC1503B Air Compressor 50L Belt Drive 3hp with Cast Cylinders & Wheels
Sealey SAC1503B Air Compressor 50L Belt Drive 3hp with Cast Cylinders & Wheels
Highlights
• Air Displacement: 13.4cfm(380L/min).
• Maximum Free Air Delivery: 8.8cfm(249L/min).
• Maximum Pressure: 145psi(10bar).
• Suitable for the professional workshop, these units are fitted with a genuine 3hp motor.
• Twin capacitors and a centrifugal switch aid trouble-free start-up on a 13A supply.
• Pumps feature a heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life.

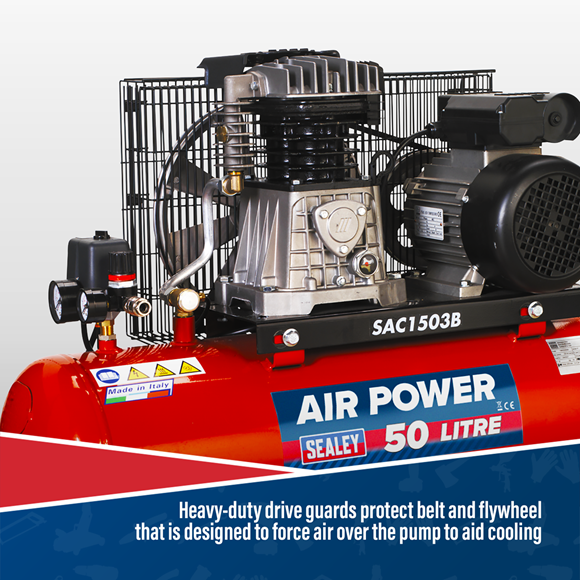

• Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
• Supplied with full CE certification, test certificates and operating/maintenance manual.
Technical Details
| Air Displacement cfm(L/min): | 13.4(380) |
| Maximum Free Air Delivery cfm(L/min): | 8.8(249) |
| Maximum Pressure: | 145psi(10bar) |
| Minimum Rated Supply: | 13A |
| Motor Output: | 3hp |
| Nett Weight: | 50kg |
| Oil Capacity: | 0.45L |
| Outlet: | Quick Release Coupling |
| Phase: | 1ph |
| Receiver Capacity: | 50L |
| Size (W x D x H): | 1020 x 390 x 740mm |
| Speed: | 1630rpm |
| Supply: | 230V/13A |
Warranty
Sealey 1 year guarantee as standard
