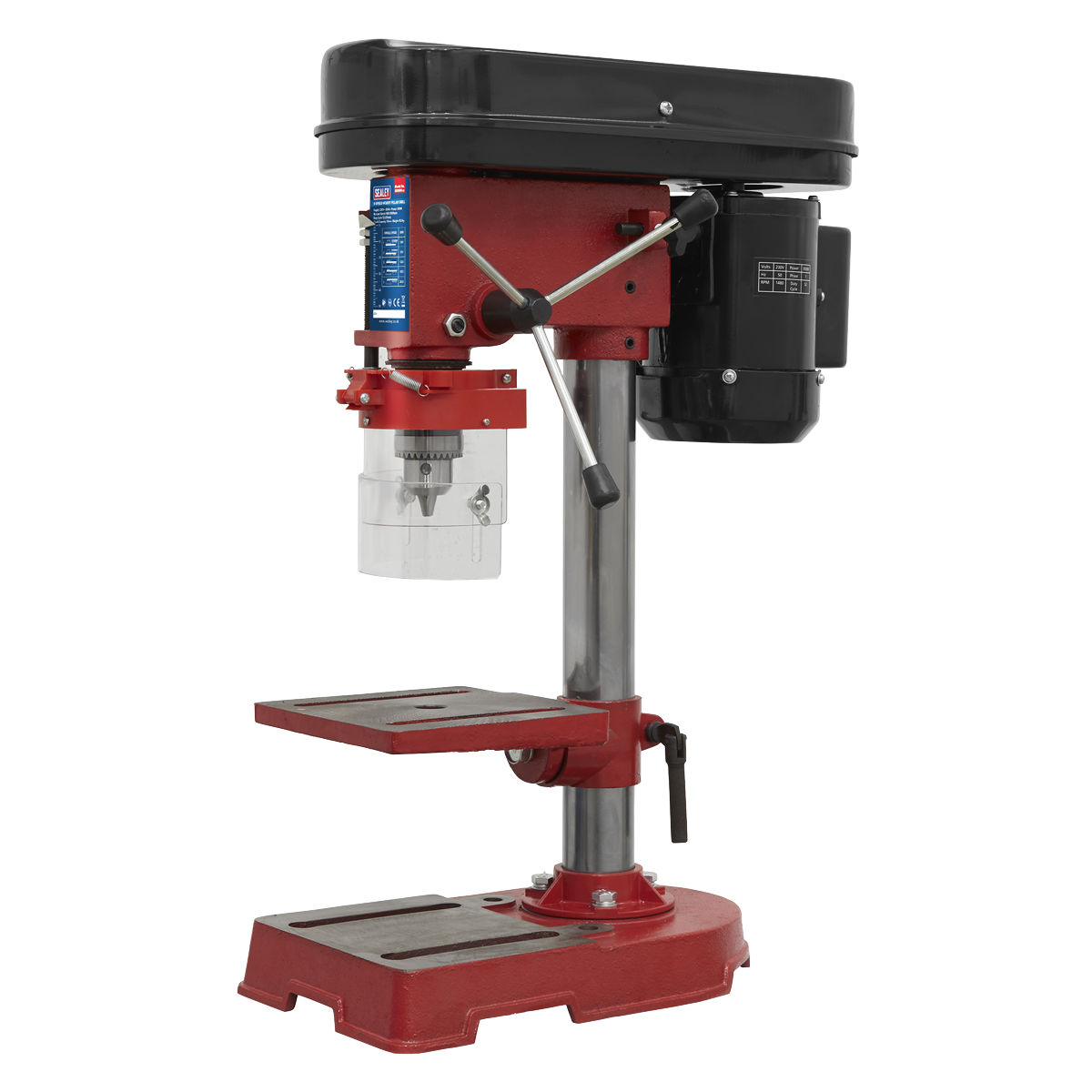

Sealey SDM30 Bench Mounting Pillar Drill 5-Speed 350W/230V
Sealey SDM30 Bench Mounting Pillar Drill 5-Speed 350W/230V
Highlights

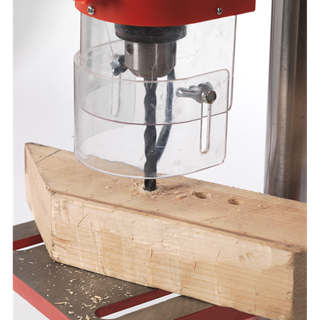

• One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications.

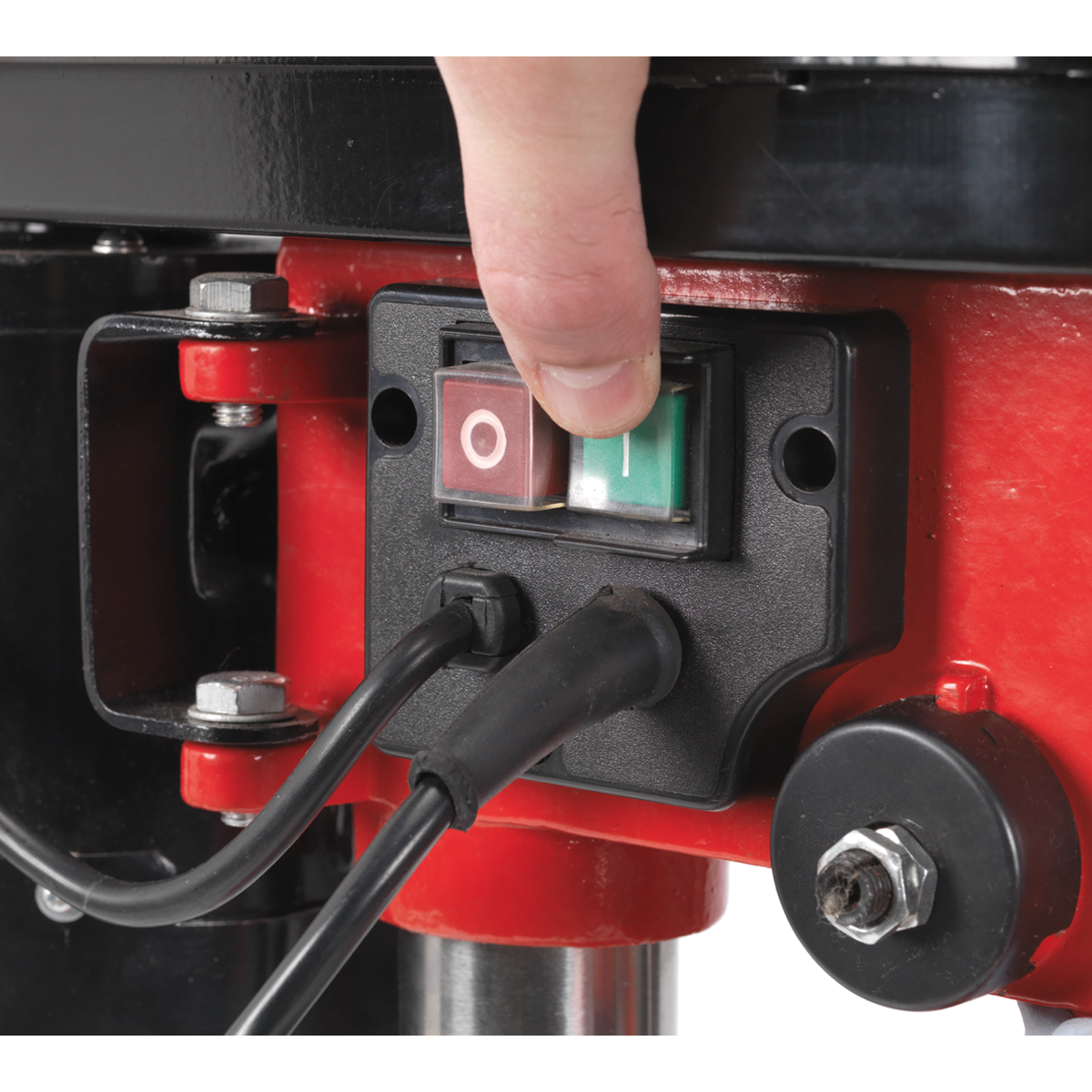

• Safety devices fitted include a no-volt release switch, allowing insurance company approval for use in educational establishments.
• Model No. GDM50B and up have Morse taper spindle housings for accepting taper shank drill bits.

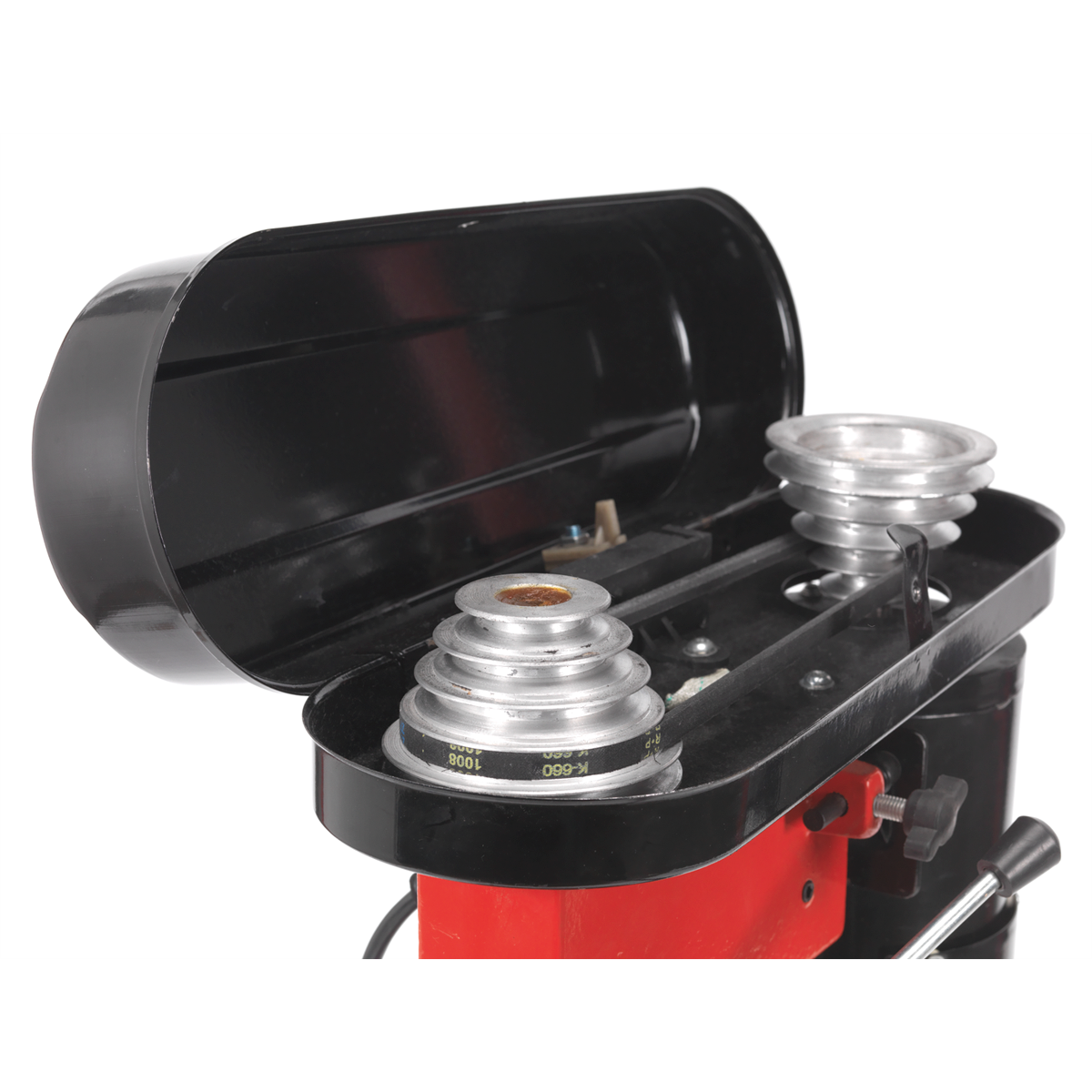

• All models offer multiple speed drives and access to drive belts is denied during operation by mechanical protection.

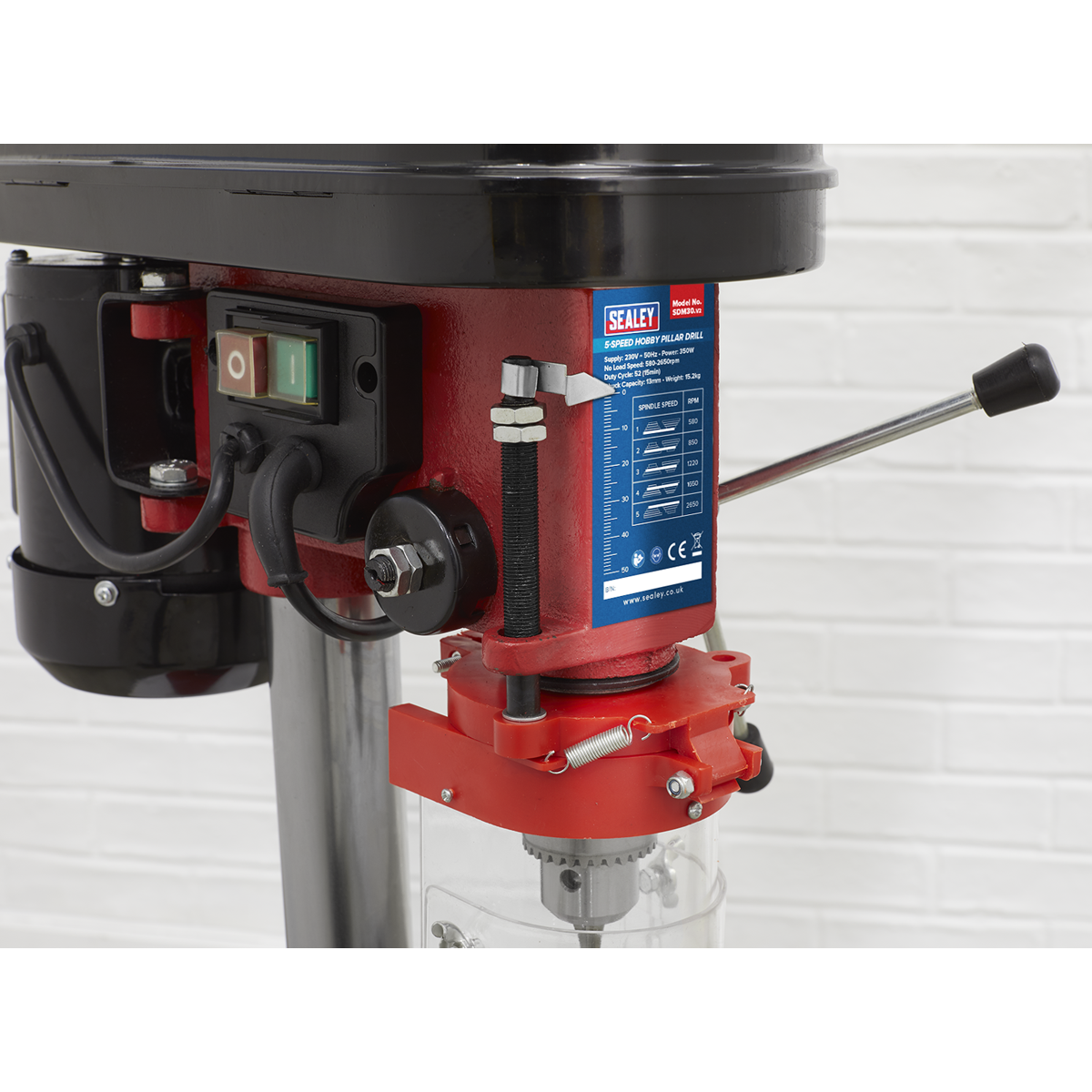

• All drills are fitted with rack and pinion feed shafts with preset depth control for repetitive work.
• Mortise attachments are available for all Model No's GDM120B - GDM200F inclusive.
• 13mm(1/2") Capacity chuck.
• 5-Speed settings between 580 and 2650rpm.
• Height: 580mm.
• Chuck to Column: 104mm.
• Motor Power: 185W, Input Power: 350W.
• Column Diameter: Ø46mm.
• Spindle Travel: 50mm.
• Weight: 15.2kg.
Technical Details
| Base Size: | 200 x 310mm |
| Collar Diameter: | Ø40mm |
| Column Diameter: | Ø46mm |
| Drilling Capacity (Chuck Size): | 13mm |
| Maximum Distance Spindle to Base: | 290mm |
| Maximum Distance Spindle to Table: | 200mm |
| Motor Power (Start): | 185W(350W) |
| Nett Weight: | 11kg |
| Number of Speeds: | 5 |
| Overall Height: | 580mm |
| Speed Range: | 580-2650rpm |
| Spindle Centre to Column: | 104mm |
| Spindle Nose Taper: | MT2 |
| Spindle Travel: | 50mm |
| Supply: | 230V |
| Swing: | 208mm |
| Working Base Surface Size: | 138 x 180mm |
| Working Table Surface Size: | 158 x 160mm |
Warranty
Sealey 1 year guarantee as standard
