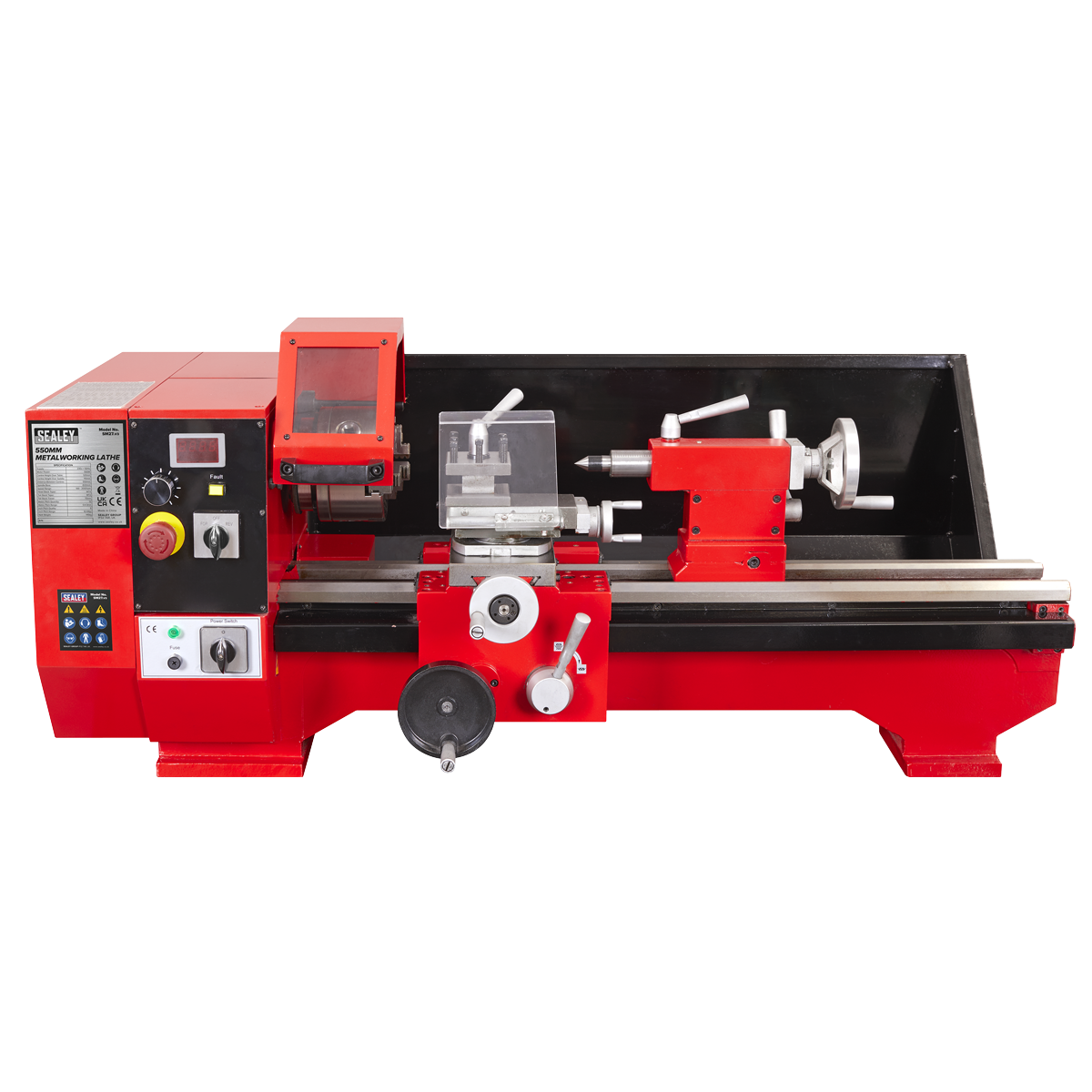

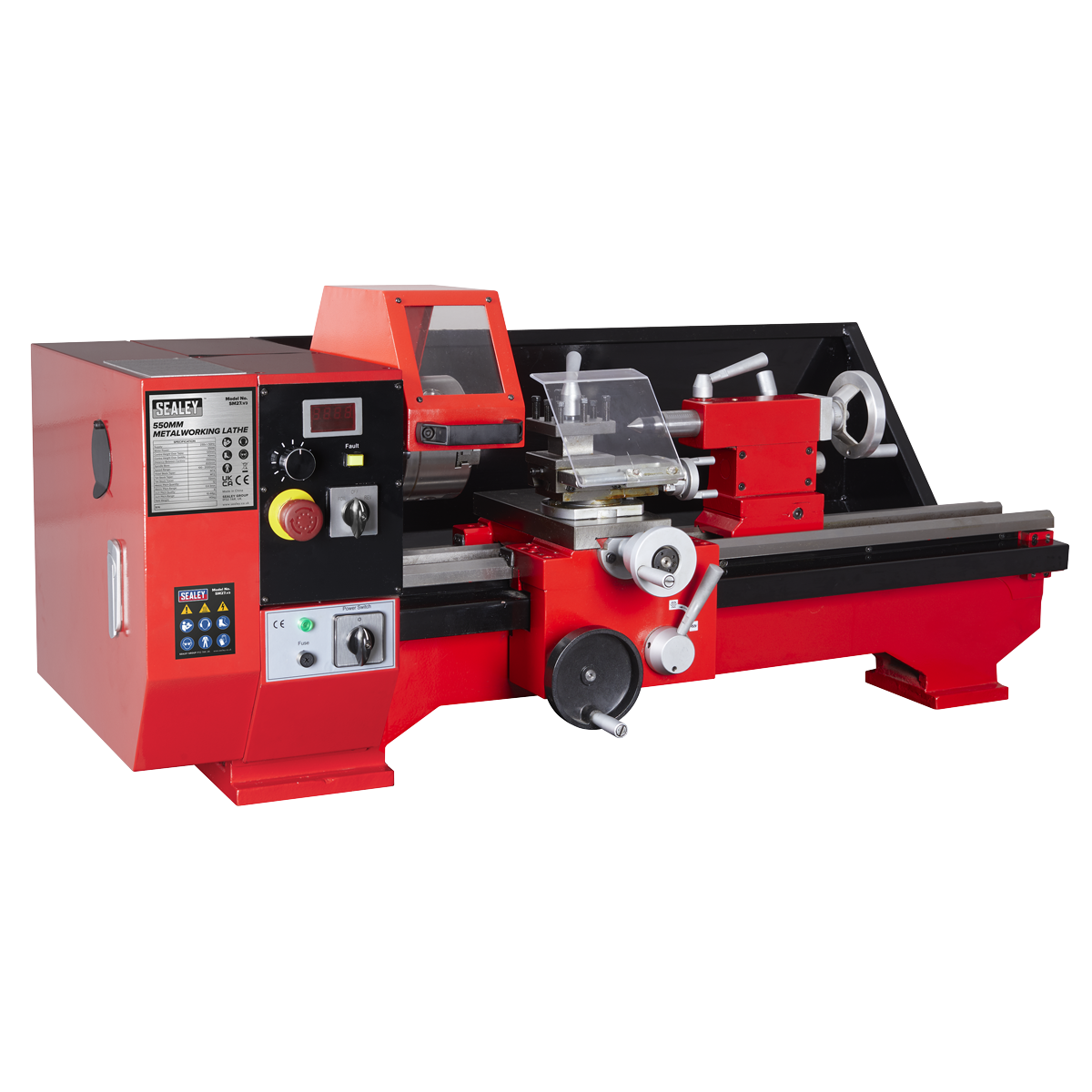

Sealey SM27 Metalworking Lathe 550mm Between Centres
Sealey SM27 Metalworking Lathe 550mm Between Centres

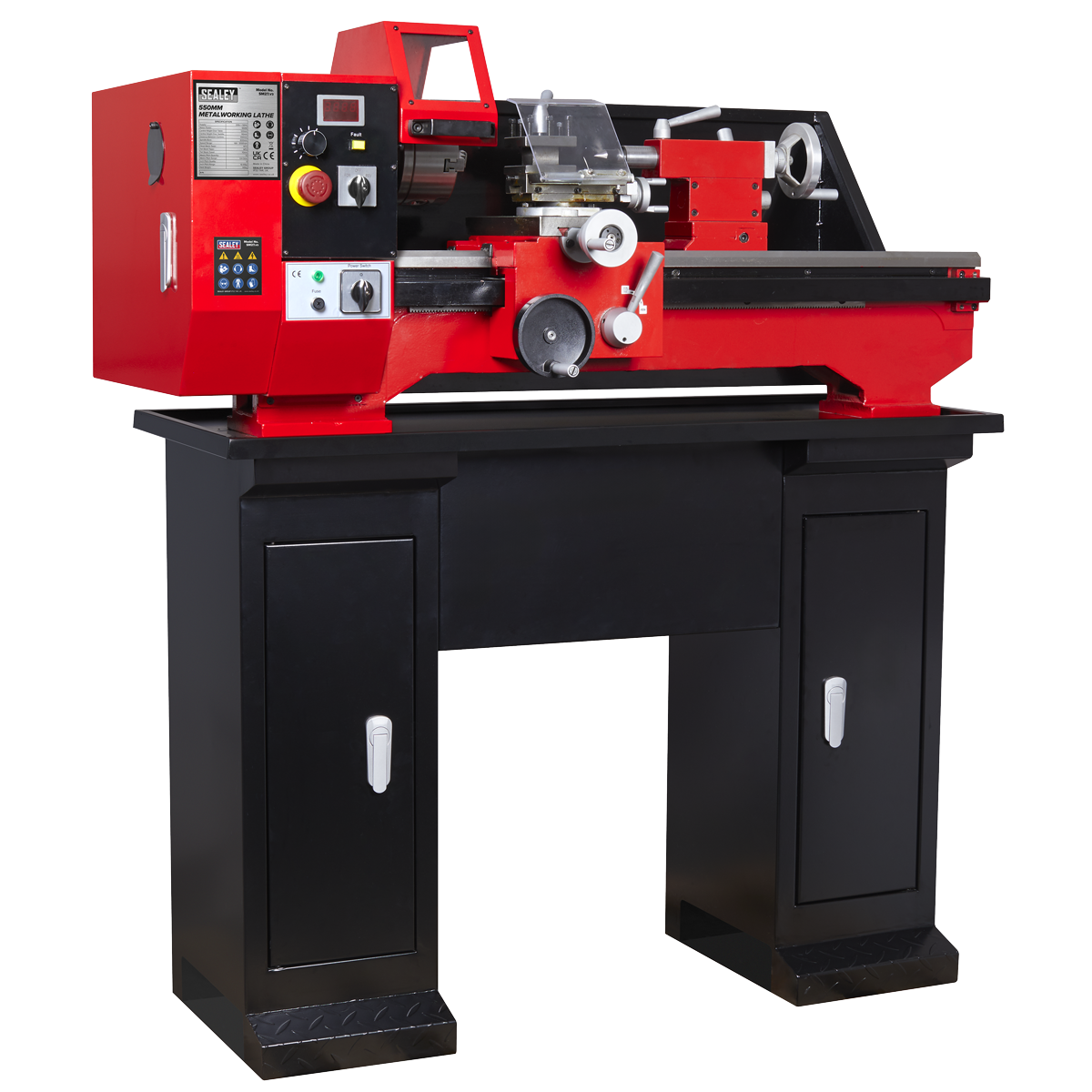

SM27 Lathe Shown with SM27ST Machine Stand
Highlights
• HIGH QUALITY - Workshop lathe suitable for a wide range of turning and drilling applications.
• VARIABLE SPEED - 550W Motor through infinitely variable speed gearbox.
• SELF-CENTERING - 3-jaw chuck and dead centre.
• POWER FEED - For even surface finish and thread cutting.
• FAST TOOL CHANGE - 4-Way tool post mounted on compound slide mechanism enables fast interchange of cutting tools with accurate feed.
• OPTIONAL STAND - Workshop stand available as an extra, order Model No. SM27ST.
• NOTE - This item is heavy. Extra assistance must be provided at the delivery point to help.
Technical Details
| Nett Weight: | 145kg |
| Centre Height Over Table: | 120mm |
| Centre Height Over Saddle | 110mm |
| Distance Between Centres: | 550mm |
| Spindle Bore: | Ø26mm |
| Speed Range: | 100-2000rpm |
| Head Stock Taper: | MT4 |
| Tail Stock Taper: | MT2 |
| Tail Stock Travel: | 70mm |
| Metric Pitch Quantity: | 12 |
| Metric Pitch Range: | 0.4-3mm |
| Inch Pitch Quantity: | 8 |
| Inch Pitch Range: | 10-44tpi |
| Motor Power: | 550W |
| Supply: | 230V |
Optional

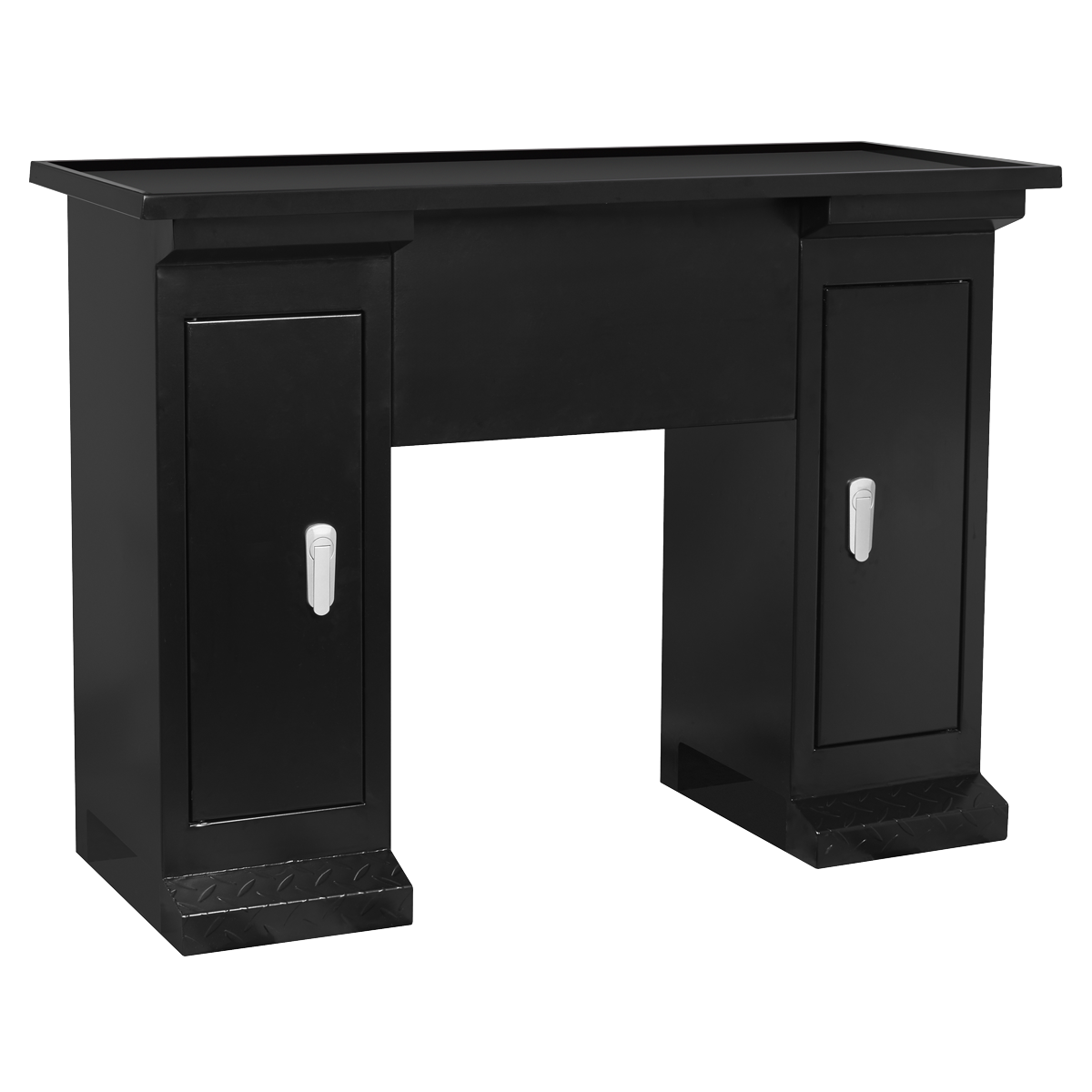

Lathe Stand for SM27 (Model No. SM27ST)
Highlights
• UNIVERSAL - Suitable for Model No. SM27 metal turning lathe and other similar lathes.
• PRACTICAL - Includes suds tray and two latched door storage cabinets with shelves.
• STRONG - Made from welded steel and heavy duty feet making it incredibly sturdy.
• RANGE - Part of a vast range of lathe accessories and tools available from Sealey.
• (Lathe not included)
| Nett Weight: | 39kg |
| Height: | 765mm |
| Width: | 1040mm |
| Depth: | 420mm |
Warranty
All Sealey products are covered by a minimum 1-Year parts and labour guarantee.
