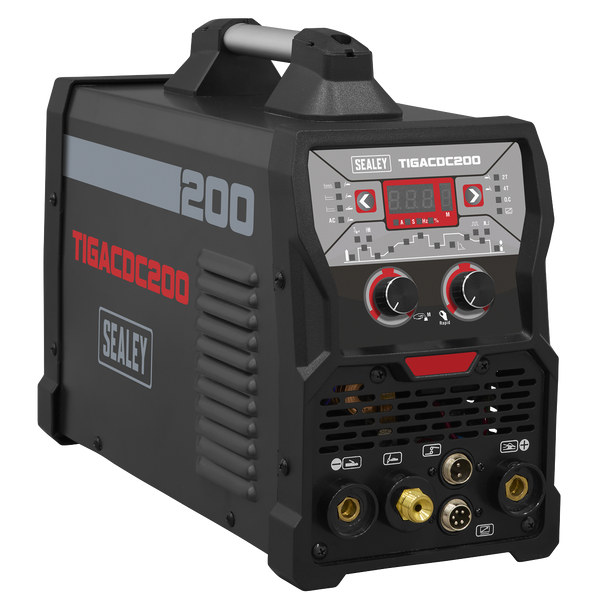

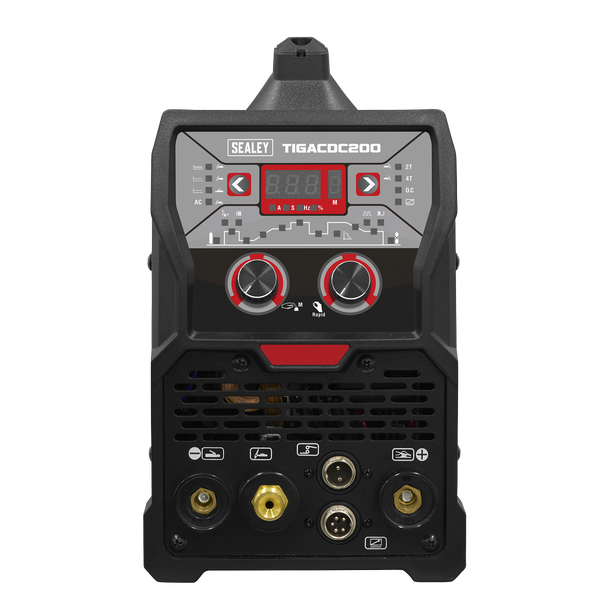

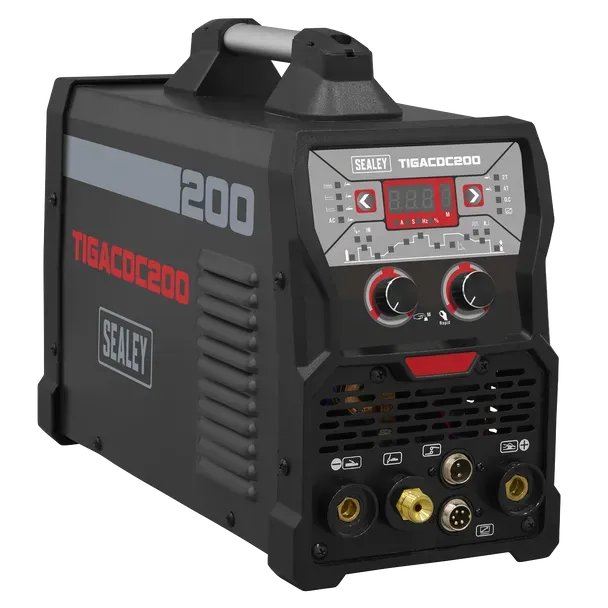

Sealey TIGACDC200 200A TIG/MMA AC/DC Pulse Inverter Welder 230V
Sealey TIGACDC200 200A TIG/MMA AC/DC Pulse Inverter Welder 230V
Highlights
. IGBT INVERTER TECHNOLOGY - IGBT Inverter technology fitted with fan-cooled AC/DC power supply suitable for both TIG and MMA/ARC welding applications up to 200A.
• SUITABLE FOR WELDING A VARTIETY OF METALS - Suitable for welding a variety of metals including aluminium, magnesium, stainless steel, steel, copper, nickel and titanium.

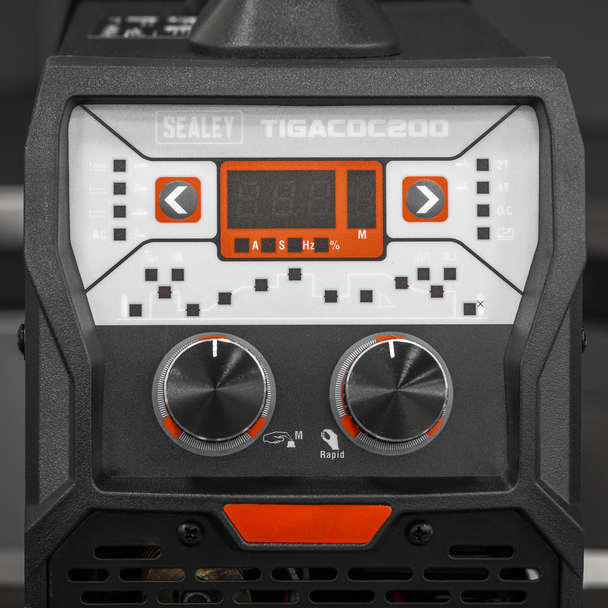

• MULTI-STAGE INVERTER - 20-stage parameter adjustment program to suit welder's requirements.
• LIGHTWEIGHT AND PORTABLE – Weighing 8.5kg this welder is highly portable allowing the welder to be taken to the job at hand making it ideal for the mobile technician.
• FEATURING – Features hot start, anti-stick, forced air cooling, thermal cut-out protection and quick release switch on the torch for control of gas, saving on consumption.
• LIFT START - Suitable for MMA/ARC welding using the lift start method for better weld quality.

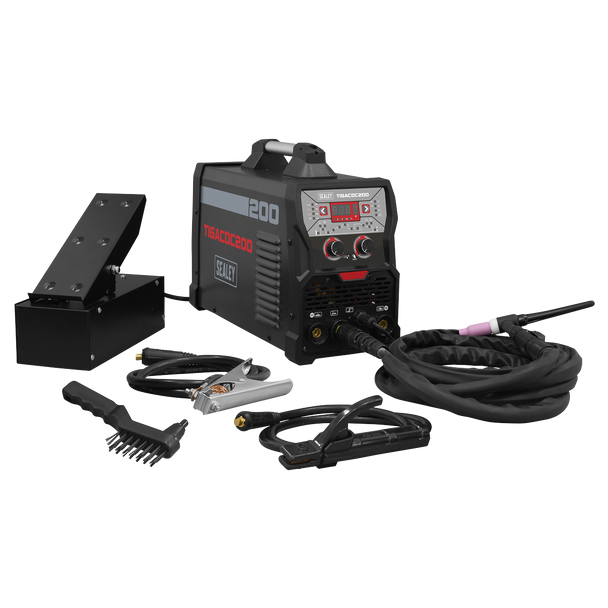

• ACCESSORIES SUPPLIED - Supplied with earth clamp, TIG torch and accessories, electrode holder and foot pedal.
Technical Details
| Power Output: | 10-200A |
| Duty Cycle: | AC - 100% @ 110A, 60% @ 141A, 30% @ 200A DC - 100% @ 93A, 60% @ 120A, 30% @170A |
| Electrode Capacity: | Ø1.6-4mm |
| Absorbed Power: | 5.4KW |
| Supply: | 230V* |
| Insulation Class: | F |
| Protection: | IP21S |
| Note: | *to achieve maxiumum power a 32A supply may be required. |
| Nett Weight:
|
8.5kg
|
| Barcode:
|
5054630448195
|
| Parts Diagram:
|
|
| Declaration of Conformity:
|
Warranty
Sealey 1 year guarantee as standard
