Sicmi Semi Automatic Hydraulic Press For Sheet Metal Bending – PDL -S ( 40 - 100 Ton rated options)
Sicmi Semi Automatic Hydraulic Press For Sheet Metal Bending - PDL-S
( 40 - 100 Ton rated options)
Delivery Lead Time / 75 Days to UK Mainland Sites from Order.
Highlights
Semi Automatic PDL -S Models

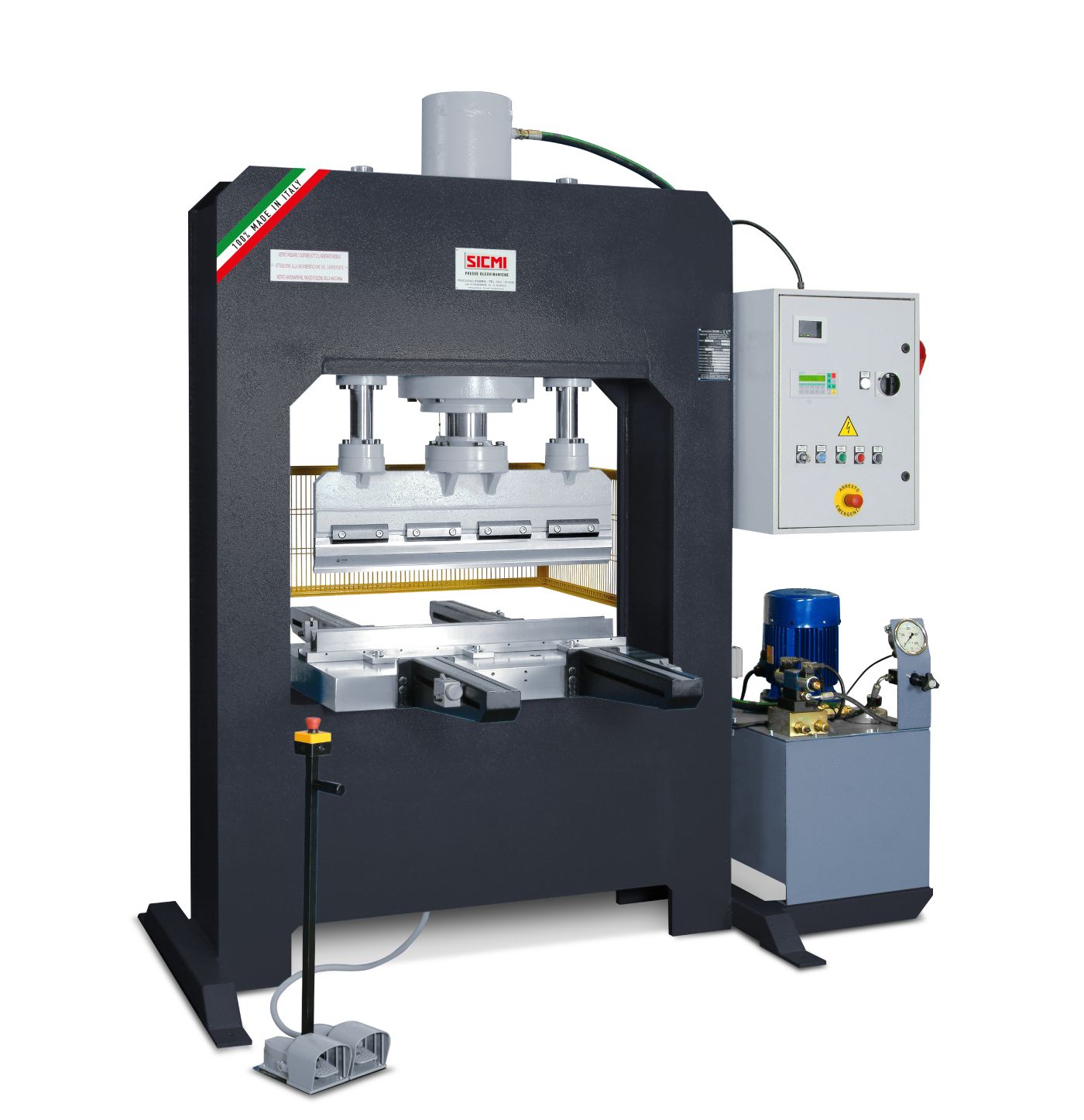

Hydraulic bending press machine with monolithic frame specific for sheet metal.
The PDL hydraulic press is made with a highly rigid electro-welded steel carpentry structure and has an upper mobile support and a lower fixed surface.
The attachments and fixing brackets for the punch are arranged on the upper mobile part, while the brackets for the sheet metal bending die are installed on the lower platform.
The electro-hydraulic press is equipped with front supports for positioning the metal piece to be worked and are equipped with a millimeter rod.
A rear protective metal mesh is also provided to allow operators to work in total safety.
The approach speed of the hydraulic cylinder is under 10 mm/sec and this, based on safety regulations, allows the operator to have his hands free and to be able to move the sheet metal during the press processing phases.
The PDL hydraulic bending press machine is available in semi-automatic and automatic versions.
Semi-automatic with lever:
In the semi-automatic model the user operates the machine using a lever, while with the other free hand he has the possibility of handling the sheet metal.
The presence of sensors that regulate the stroke of the cylinder is also foreseen.
Range of Sizes Available
PDL 40S 40 Ton Rated
Stanchions Distance 900 mm - Punch support length 835 mm
PDL 70S 70 Ton Rated
Stanchions Distance 900 mm - Punch support length 835 mm
PDL 100S 100 Ton Rated
Stanchions Distance 1050 mm - Punch support length 1000 mm
Standard Equipment
- Pair of Front Support Plates equipped with mm measure & adjustment
- Maximum pressure valve
- Anchoring hydraulic pipes
- Anti Fall & Anti Exposion Valves
- Anchoring electrical cables
- Stop flex anchor
- Current transformer
- Cylinder limit switches
The units feature control with level and regulation of the stroke with microns for up/down,
Monolithic frame, Cylinder stroke 500 mm.
Optional Equipment
Pair of Rear Supports
Warranty
Sicmi 1 year guarantee as standard
Founded in 1983, Sicmi is now known nationally and internationally as a leading brand of press automation.
Quality System UNI EN ISO 9001: 2008
