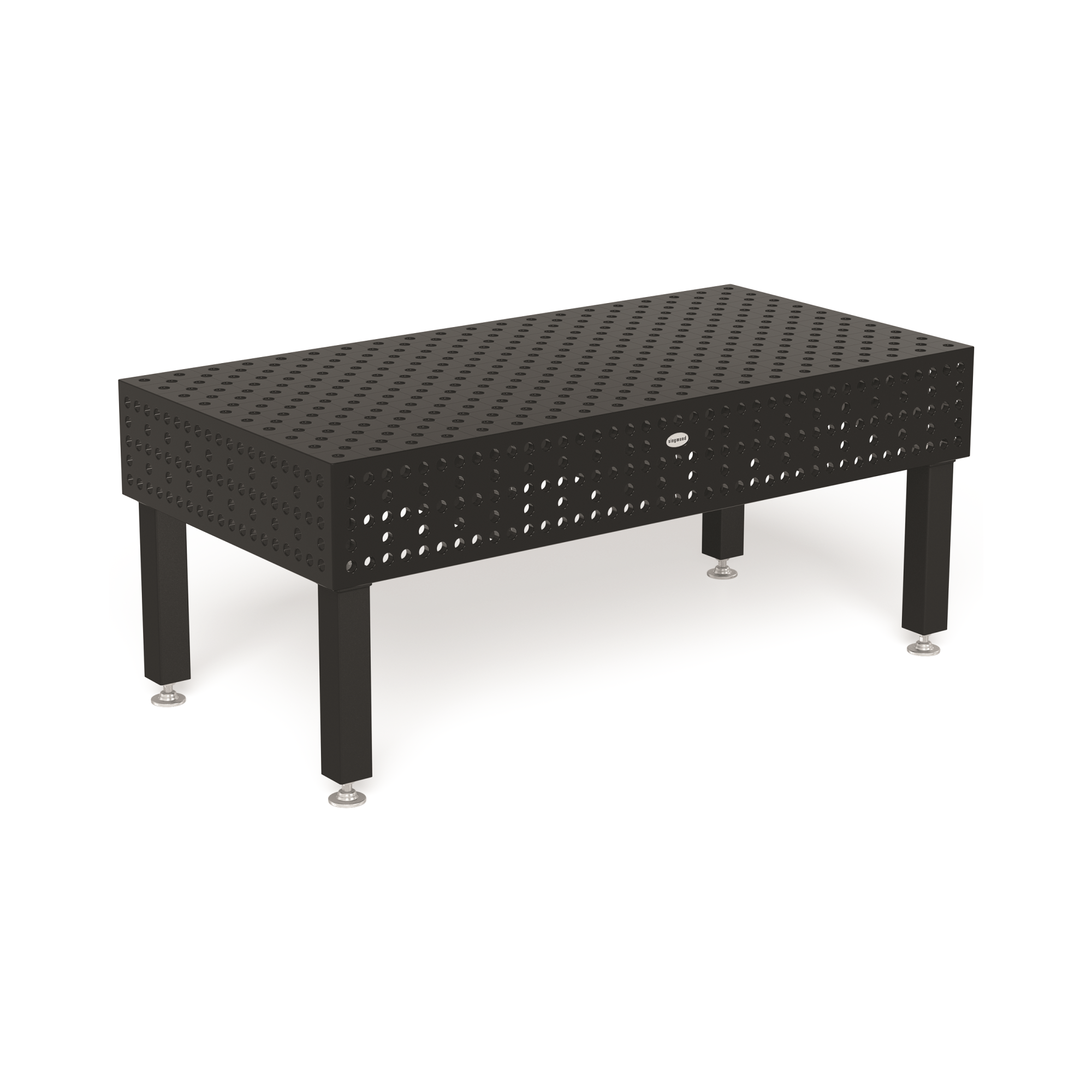

The Siegmund System 28 welding tables are the largest and most popular tables that Siegmund provide. Manufactured with the purpose of heavy-duty fabrication in mind, the 27mm thick reinforced steel work top is built to withstand the toughest tasks.
Ranging from the System 28 Basic for a more economical entry point into the system to the top of the range and bestselling Extreme 8.8 Plus. Made with wholly unique, through-hardened tool steel alloy known as Siegmund X8.
With each table having boreholes of 28mmØ across the work surface and side panels all the toolboxes, stops, clamps and accessories are compatible with the other welding tables in the System 28 range.
The boreholes on the work surface are in a 100 x 100 grid on the Basic & Professional 750 tables and a diagonal grid on the Basic 8.7, Extreme 8.7 & Extreme 8.8+ with 1mm scaling along the perimeter of the tables from the Professional 750 upwards.
All the welding tables in the System 28 range are available with or without plasma nitration but it is recommended to opt for nitration as it massively increases the lifespan of the table as well as the surface hardness, resistance to impacts, scratches, welding spatter and corrosion.
All System 28 welding tables are available with a diverse range of alternative legs. If you’d prefer legs on lockable castors for easier movement, legs with adjustable heights or floor mounted for maximum strength and stability.
• 28mm Borehole
• Boreholes in a diagonal grid
• Size 2000 x 1000 mm
• Plasma Nitration
• BAR Coating
• Modular
• 280020.XD8PL
Table length / width 2000 mm x 1000 mm
Borehole Ø 28 mm
Boreholes in a Diagonal Grid
Borehole Spacing of table side 3 rows of 50mm spacing, 2 rows of 100mm spacing
Height of table side 300mm
Material thickness approx. 24.5 – 27 mm
The WJT-AK43 43 Piece Welding Jig Table Accessory Kit is the perfect starter set for the Baileigh Industrial line of welding tables.
Below is a list of the included tooling:
Item Number | WJT-AK43 |
---|---|
Shipping Weight | 100lbs |
Shipping Dimensions (Inches) | 24x24x24 |
* specifications subject to change without notice.
