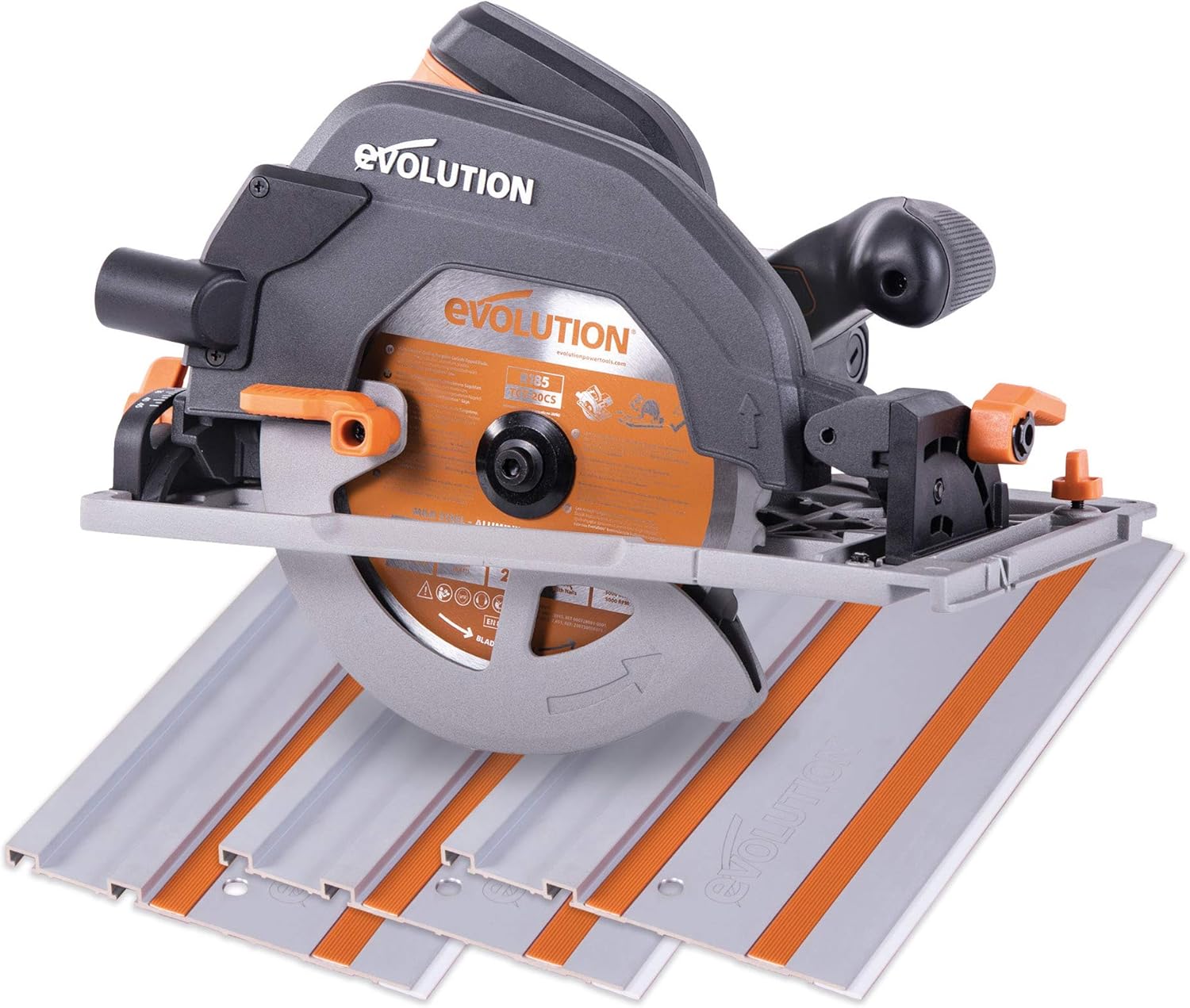

Evolution R185CCSX 185mm Circular Saw with 1020mm Track and TCT Multi-Material Cutting Blade
Evolution R185CCSX 185mm Circular Saw with 1020mm Track and TCT Multi-Material Cutting Blade
Highlights
Trade rated, best in class, 185mm circular saw, ideal for any professional. Designed in Sheffield, South Yorkshire, this impressive multi-material cutting circular saw with 1600W, the powerful, hi-torque motor is capable of cutting wood even with embedded nails, laminate, aluminium, plastic and even 6mm thick mild steel, all with the same Japanese made, tungsten carbide tipped blade.
With a 1020mm track included this circular saw is hard to ignore. Power and precision at the forefront of its design, the R185CCSX ensures accuracy and reliability to get the job done faster, smoother and safer than ever before. True value for money with 3 years limited warranty.
-
- Multi-Material cutting technology. One saw, one blade, cuts all.*
- Accurate cutting with adjustable 64mm depth of cut - perfect for trench cutting.
- Reliable smooth square cutting every time in a variety of materials.
- Powerful 1600W hi-torque motor with optimized gearbox & blade system.
- 0° - 45° bevel tilt with a virtual pivot keeps the blade on the same cutting line at any angle when fixed to a track.
- Ergonomic, soft-grip handles to provide maximum control, versatility, and precision.
- Dust extraction port & adaptor included for vacuum compatibility.
- 1020mm Circular Saw Track included. Supplied in 3x pieces with connectors.
- Compatible With Evolution's 1.4m & 2.8m Tracks (Sold Separately)
- Robust & sturdy construction with even weight distribution, weighing only 4.8kg
- Channeled airflow & base indicators ensure optimum visibility of your cutting line.
- Premium Japanese Tungsten-Carbide-Tipped (TCT) 185mm blade included.
- 3 Year limited warranty.
Technical Details
| Motor (110V 50Hz): | 1600W |
| Motor (240V 50Hz): | 1600W |
| Speed No Load (110V): | 3700 rpm |
| Speed No Load (240V): | 3900 rpm |
| Max. Bevel (Left): | 45° |
| Circular Saw Base: | Cast Aluminium |
| Cable Length: | 3m |
| Blade Dia.: | 185mm |
| No. of Teeth: | 16 |
| Bore: | 20mm |
| Kerf: | 1.7mm |
| Max. Depth of Cut (0°): | 64mm (59mm w/Track) |
| Max. Depth of Cut (45°): | 47mm (42mm w/Track) |
| Mild Steel Plate (Max. Thickness): |
3mm |
| Mild Steel Box Section (Max. Wall Thickness): |
3mm |
| Product Dimensions: | 255mm x 375mm x 265mm |
| Packaging Dimensions: | 380mm x 300mm x 250mm |
| Product Weight: | 5.1kg |
| Packaged Weight: | 8.3kg |
| Sound Pressure Level L PA : | 94,3dB(A) K=3 dB(A) |
| Sound Power Level L WA : | 105,3dB(A) K=3 dB(A) |
| Vibration - Main Handle (Sawing Wood): | A h,w = 3,347m/s 2 |
| Vibration - Auxiliary Handle (Sawing Wood): | A h,w = 3,119m/s 2 |
| Vibration - Main Handle (Sawing Metal): | A h,M = 3,572m/s 2 |
| Vibration - Auxiliary Handle (Sawing Metal): | A h,M = 3,241m/s 2 |
| Uncertainty K: | 1,5m/s 2 |
Optional
Evolution Track Clamps x2 ( ID;004-0052)
Evolution Warranty
Summary
• All Evolution single circular blade saws and magnetic drills are covered with 3 year warranty. All other Evolution power tools are covered with 2 year warranty.
• Refurbished power tools by Evolution come with a 90 day warranty.
• This warranty does not cover blades, accessories, spare parts and discontinued models.
• Please keep your proof of purchase / delivery.
• If you purchase your Evoluton product from Traxx you must register your product warranty
with Evolution • The warranty becomes effective at the date of purchase (or the date of delivery if this is later).
• You must provide proof of delivery / purchase before any work can be carried out on your machine. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
• All work will be carried out by Evolution.
• Any parts which are replaced will become the property of Evolution.
• The repair or replacement of your machine under warranty will not extend the period of warranty.
• Evolution Power Tools reserves the right to optionally repair or replace it with the same or equivalent item.
• This warranty statement provides benefits which are additional to and do not affect your statutory rights as a consumer.
