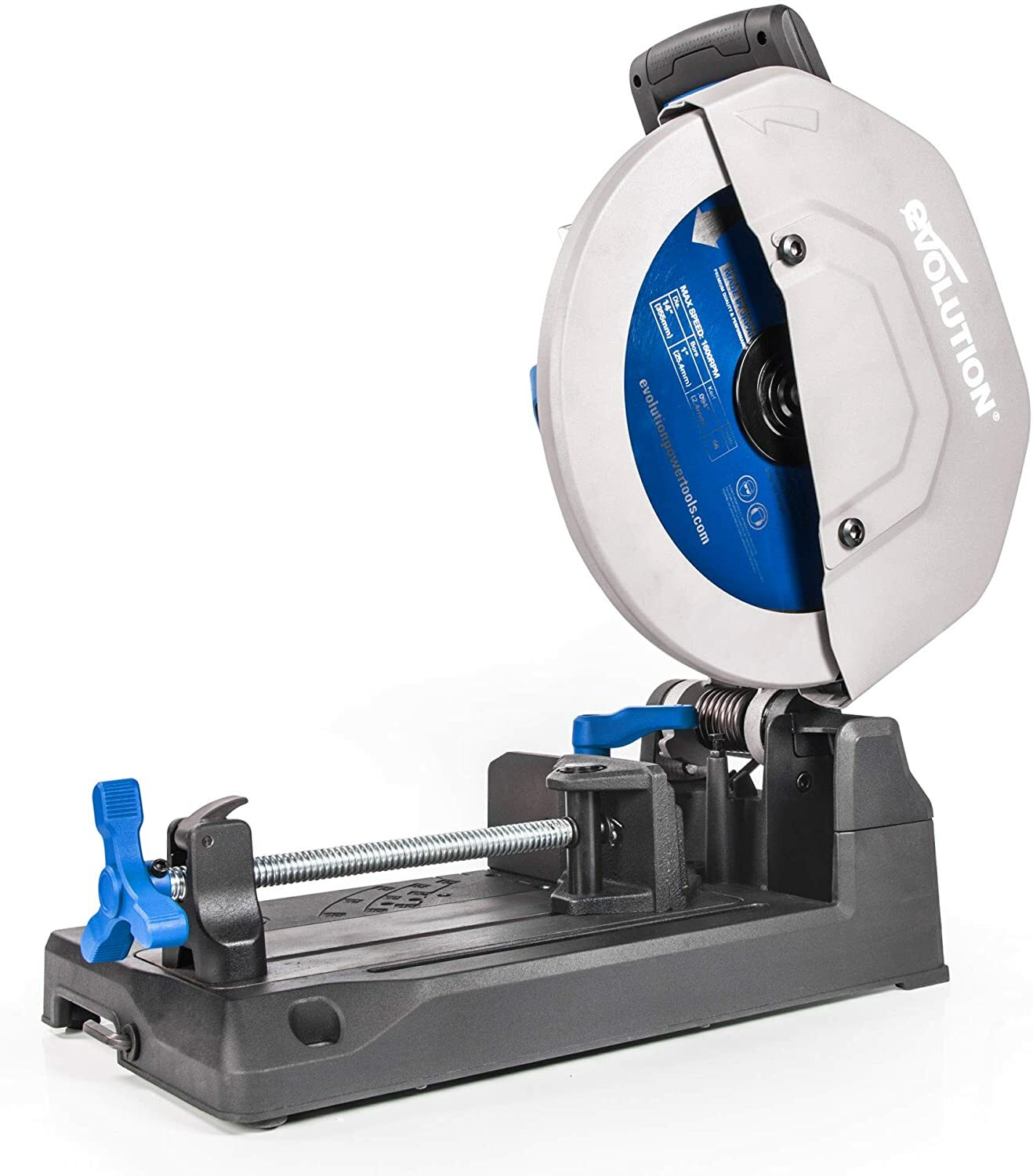

Evolution S355CPS Chop Saw/355mm Mild Steel Cutting TCT Blade ( Optionally available with Universal Chop Saw Stand) ( Available with free of charge UK mainland delivery)
Evolution S355CPS Chop Saw/355mm Mild Steel Cutting TCT Blade
( Available with free of charge UK mainland delivery)
Highlights
- Heavy-duty cast aluminum base with integrated wear plate & bench mounting holes.
- Quick-release vice with robust square-threaded rod for fast & secure clamping.
- Accurate & durable cast steel vice with 0° - 45° miter capacity & locking pin.

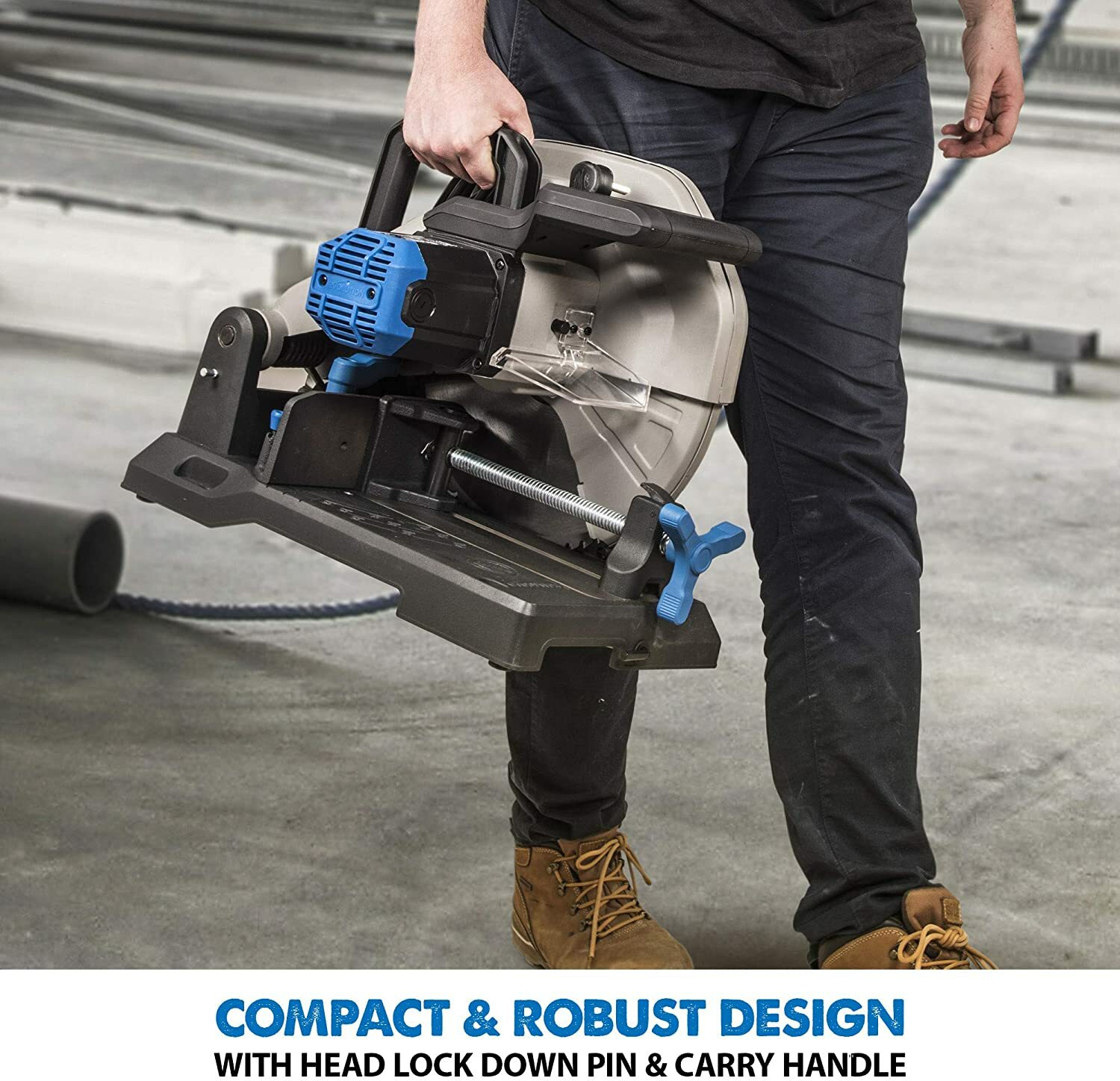

- Compact design with a head lock down pin & carry handle for easy transportation.
- Chip collection tray for a cleaner, safer working environment.
- Ergonomic, ambidextrous trigger with comfortable textured grip.
- Attachable ‘v’ shape block included for secure clamping of round & square tube.
- Easy blade change with integrated tool storage.
- Available in 230 v or 110v versions.
Technical Details
| 2200W | |
| Motor (110V 50Hz): | 1600W |
| Speed No Load: | 1550 min -1 |
| Max. Bevel (Left): | 45° |
| Cable Length: | 3m |
| Blade Dia.: | 355mm |
| No. of Teeth: | 66 |
| Bore: | 25.4mm / 1 In. |
| Kerf: | 2.4mm |
| Mild Steel Plate (Max Thickness): | 6mm |
| Stainless Steel Plate (Max Thickness): | 5mm |

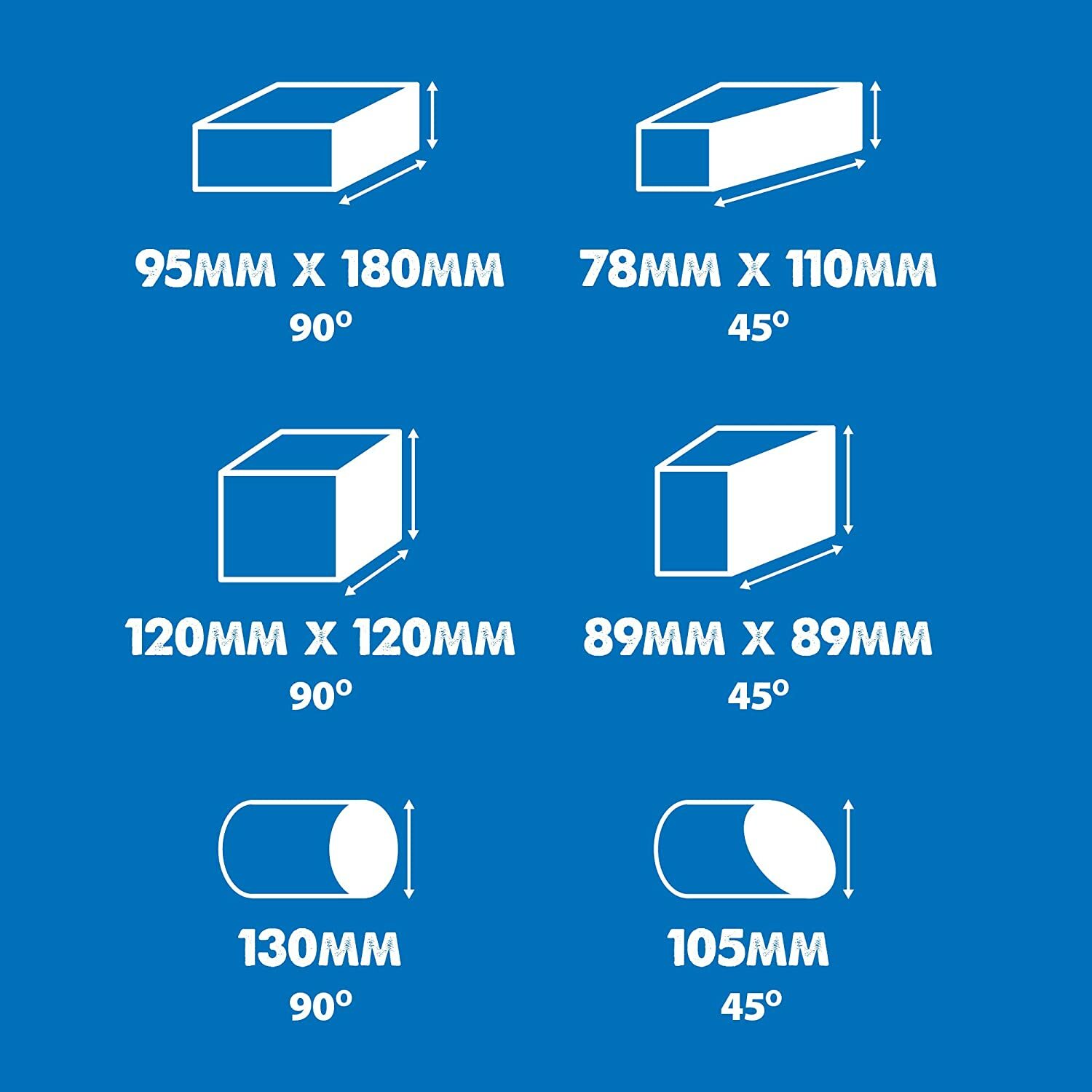

| Square Tube at 90° (Mild Steel): | 120 x 120mm |
| Square Tube at 45° (Mild Steel): | 89 x 89mm |
| Rectangle Tube at 90° (Mild Steel): | 95 x 180mm |
| Rectangle Tube at 45° (Mild Steel): | 78 x 110mm |
| Round Tube at 90° (Mild Steel): | Ø 130mm |
| Round Tube at 45° (Mild Steel): | Ø 105mm |
| Minimum Cut Off Piece Length: | 8 mm |
| Packaging Dimensions: | 470 x 575 x 374mm |
| Product Dimensions: | 410 x 530 x 310mm |
| Product Weight: | 23.1 kg |
| Packaged Weight: | 27 kg |
| Sound Pressure Level L PA : | 94.9 dB(A) K:3dB(A) |
| Sound Power Level L WA : | 107.9 dB(A) K=3 dB(A) |
Optional
Highlights
Working with long, heavy steel tubes? Now you can take your chop saw anywhere with the sturdy and robust chop saw stand for versatile, portable cutting which can support up to 225kg.
- Universal fittings to fix most leading brand chop saws securely.
- Bespoke table height setting with adjustable legs from 595 - 815mm.
- Left and right work arms extend the workpiece support area up to 106cm.
- Built-in end stop, makes repeat cutting faster and easier than ever before.
- Telescopic and folding legs for easy storage and portability.
- Heavy-duty design built to support up to 225kg.
- 3-year guarantee.
- Compatible with the Evolution RAGE2, EVOSAW355, R355CPS and S355CPS chop saw models.
Technical Details
- able size: 460 x 600mm
- Min. Chop Saw Base Width: 220mm
- Max. Chop Saw Base Width: 322mm
- Table Height: 595mm - 815mm
- Footprint at floor: 834 x 963mm
- Max. Load: 225kg
- Product Weight: 16kg
2/ Evolution 355mm Mild Steel Cutting 66T Blade
Highlights
Evolution 355mm 66 tooth blade for cutting mild steel is compatible with the Evolution
EVOSAW355 - 355 mm Chop Saw
S355CPS - 355 mm Chop Saw
Evolution saw blades are designed to deliver maximum performance by using the highest grade carbide, hardened blade bodies & ultra high-grade brazing techniques. All offer premium quality to increase production & performance!
Technical Details
| Dia. Ø: | 355mm |
| Max. Speed: | 1600rpm |
| Bore Ø: | 25.4mm |
| Kerf: | 2.4mm |
| Teeth: | 66 |
Evolution Warranty
Summary
• All Evolution single circular blade saws and magnetic drills are covered with 3 year warranty. All other Evolution power tools are covered with 2 year warranty.
• Refurbished power tools by Evolution come with a 90 day warranty.
• This warranty does not cover blades, accessories, spare parts and discontinued models.
• Please keep your proof of purchase / delivery.
• If you purchase your Evoluton product from Traxx you must register your product warranty
with Evolution • The warranty becomes effective at the date of purchase (or the date of delivery if this is later).
• You must provide proof of delivery / purchase before any work can be carried out on your machine. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
• All work will be carried out by Evolution.
• Any parts which are replaced will become the property of Evolution.
• The repair or replacement of your machine under warranty will not extend the period of warranty.
• Evolution Power Tools reserves the right to optionally repair or replace it with the same or equivalent item.
• This warranty statement provides benefits which are additional to and do not affect your statutory rights as a consumer.
